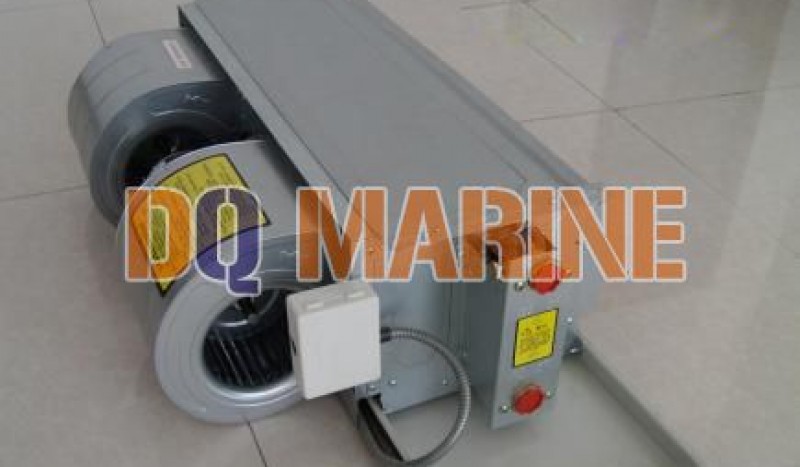

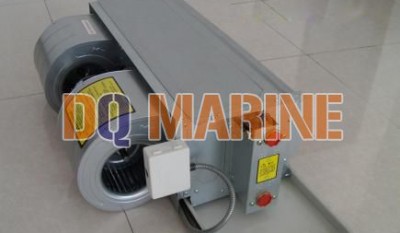

CFP-WA Horizontal Concealed Fan Coil
Description:
The fan coil is the complement product for marine air-conditioning system. It has the characteristics of compact structure, little vibration, low noise, and easy installation.
CFP-WA horizontal concealed fan coil is mainly composed of air filter, air heat exchanger, low noise centrifugal fan, knob-type speed regulation switch and electric control box.
Technical Data:
| Type | CFP-2 | CFP-3 | CFP-4 | CFP-5 | CFP-6 | CFP-7 | ||
| Cooling capacity | kw | 2 | 3 | 4 | 5 | 6 | 7 | |
| Heating capacity | kw | 3 | 4 | 5 | 6 | 7 | 8 | |
| Namely air flow | m3/h | 360 | 540 | 720 | 900 | 1000 | 1260 | |
| Cooling medium | 7℃chiled water | |||||||
| Heating medium | ≥45℃ hot water | |||||||
| Power supply | AC220V 3P 50HZ/AC 220V 1P 60HZ | |||||||
| Air coller/heater | type |
|
copper tube A1 fin | |||||
|
cold/hot water inlet temp. |
℃ | 7/45 | ||||||
| water flow | m3/h | 0.34 | 0.52 | 0.68 | 0.86 | 1.03 | 1.2 | |
| water pressure loss | kPa | 20 | 25 | 30 | 35 | 35 | 40 | |
| Fan | type |
|
||||||
| motor power | kw | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
| Noise | dB(A) |
|
≤42 | ≤45 | ≤46 | ≤48 | ≤49 | ≤50 |
|
|
|
|
|
|||||
| Type | CFP-8 | CFP-12 | CFP-15 | CFP-23 | CFP-28 | CFP-35 | ||
| Cooling capacity | kw | 8 | 12 | 15 | 23 | 28 | 35 | |
| Heating capacity | kw | 9 | 14 | 17 | 26 | 82 | 40 | |
| Namely air flow | m3/h | 1140 | 2160 | 2700 | 3600 | 5000 | 5400 | |
| Cooling medium | 7℃chiled water | |||||||
| Heating medium | ≥45℃ hot water | |||||||
| Power supply | AC220V 3P 50HZ/AC 220V 1P 60HZ | |||||||
| Air coller/heater | type |
|
copper tube A1 fin | |||||
|
cold/hot water inlet temp. |
℃ | 7/45 | ||||||
| water flow | m3/h | 1.38 | 2.06 | 2.58 | 4 | 4.81 | 6 | |
| water pressure loss | kPa | 40 | 40 | 45 | 45 | 50 | 55 | |
| Fan | type |
|
||||||
| motor power | kw | 0.09 | 0.09 | 2x0.09 | 2x0.25 | 2x0.45 | 2x.0.45 | |
| Noise | dB(A) |
|
≤52 | ≤54 | ≤57 | ≤64 | ≤69 | ≤69 |
Dimension:
| Model | L | A | H | DN1 | Weight kg |
| CFP-2WA | 850 | 480 | 530 | DN15 | 21 |
| CFP-3WA | 950 | 580 | 630 | DN15 | 24 |
| CFP-4WA | 1080 | 700 | 750 | DN20 | 28 |
| CFP-5WA | 1200 | 800 | 840 | DN20 | 30 |
| CFP-6WA | 1300 | 880 | 920 | DN20 | 31 |
