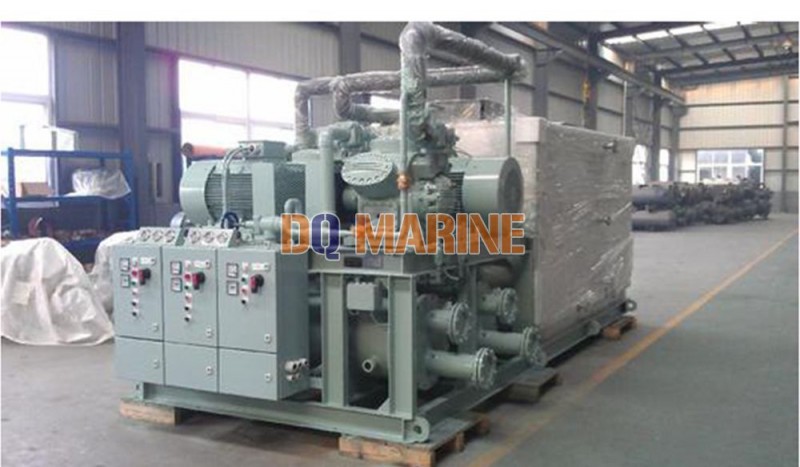

CAW Marine Air Conditioner
Category:
Marine Air Conditioner
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CAW Marine Air Conditioner:
Description:

CAW marine air conditioner is one of the air conditioning systems that should be used together with water chilling unit, it is featured by compact structure, low vibration, low noise and easy installation.

CAW marine air conditioner mainly consists of air filter, air heat exchanger, fan, motor and electrical control cabinet, etc. in addition, flow control valve station can be provided in full sets according to the requirement of user.

Technical Data:
Model CAW-23 CAW-35 CAW-47 CAW-58 CAW-70 CAW-82 CAW-93 CAW-105 CAW-116 CAW-151 CAW-175
Cooling Capacity kw 23 35 47 58 70 82 93 105 116 151 175
Heating Capacity kw 37 40 54 70 82 93 105 116 134 167 186
Regenerating medium 7℃cooling fresh water





Heating Medium ≥45℃ heating fresh water 0.3-0.4 Mpa steam





Heating system comsumption kg/h 60 80 99 120 140 159 182 198 228 284 317
Humidifying steam consumption kg/h 9 12 16 19 22 25 28 30 35 44 49
Air flow m3/h 3200 3700 4200 5000 6200 7200 8200 9000 10500 13100 15100
Fan motor power Kw 2.2 3 5.5 5.5 7.5 11 11 15 15 15 22.5
Power Supply AC380V 3PH 50HZ/AC 440V 3PH 60HZ
Weight kg 70 800 900 950 1000 1050 1150 1200 1450 1700 1800
Dimension:

Type L W H n1XL1 L2 n3xB1 B2 DN
CAW23 1900 1000 1400 3X620 20 2X430 900 32
CAW35 1950 1050 1460 3X634 24 2X451 950 40
CAW47 2050 1080 1520 3X665 27.5 2X465 980 40
CAW58 2100 1170 1570 3X684 24 2X511 1070 40
CAW70 2240 1500 1670 4X548 24 2X676 1400 50
CAW82 2400 1600 1750 5X450 25 2X750 1500 50
CAW93 2400 1600 1750 5X450 25 2X750 1500 65
CAW105 2600 1700 1750 5X510 25 2X775 1600 65
CAW116 2600 1700 1750 5X510 25 2X775 1600 65
CAW151 2700 1800 1750 6X440 30 4X410 1700 80
CAW175 2800 1900 1850 6X460 20 4X410 1800 80

Type L W H n1XL1 L2 n3xB1 B2 DN
CAW-186 3200 1900 1900 5X628 60 4X435 1800 100
CAW-210 3300 2100 1950 5X648 60 4X485 2000 100
CAW-232 3500 2100 2170 5X688 60 4X485 2000 125
CAW-250 3600 2200 2270 5X708 60 4X510 2100 125
CAW-291 3800 2200 2370 5X748 60 4X510 2100 125
