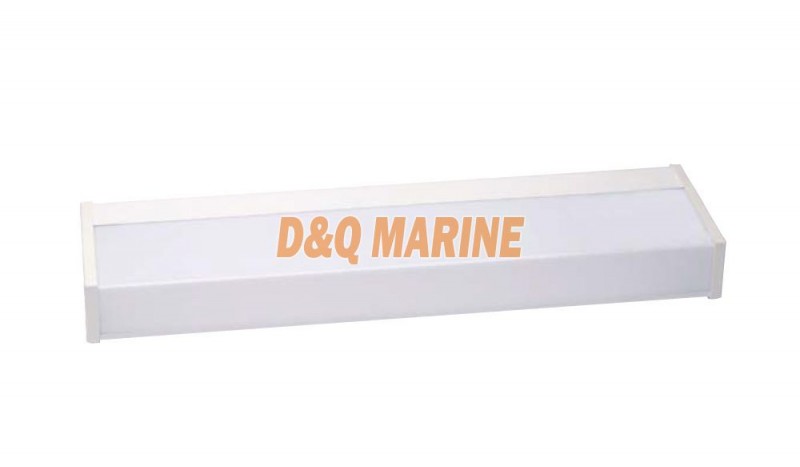

ZYB22LED LED Wall Light
The scope of application
The lamp is suitable for illumination at dry compartments of all types of vessels, such as living cabin of crew and passengers, rest room, dining room, cab, telegraph room and within the corridors and other places.
Products feature
1. Mounting type: wall type installation, compact structure, delicate appearance.
2. The shell adopts good quality cold-rolled plate welded, surface is powder coated after anti-acid white.
3. Lampshade adopts milky white poly carbonate by injection molding, non dis-coloring, good toughness, softness rays and good transparency.
4. Adopt LED light source, long working life, high intensity, and low energy consumption.
5. The cable outside diameter is Φ11～Φ13mm.
Adopt standard
1. Conform to IEC60598-1-2008 INTERNATIONAL STANDARD.
2. Conform to Rules for the classification of sea-going steel ships.
Installation
ZYB22LED LED Wall Light Specification
| Type | ZYB22LED-1 | ZYB22LED-2 |
| Voltage(V) | 220 | |
| Power(W) | 1*9 | 2*9 |
| Light Source | LED | |
| Protection Class | IP34 | |
| Weight( Kg) | 2.5 | 3 |
