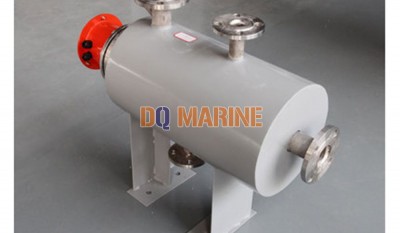

CDRSQ Marine Electric Water Heater
Category:
Marine Air Conditioner
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CDRSQ Marine Electric Water Heater:
Description:

CDRSQ Marine Electric Heater is the heating equipment of heated water of air condition system. If the heating effect of hot pump type water chiller is not good and stop working, electric heater will begin to work to gain the heated water, EL heater is mainly composed by electric heating group, temperature controller, sensor, pressure protector, stainless steel housing and wall mounted electric box etc. electric heater adopts superior electric heating pipe with science design, which make heating medium flow reasonable, no high temperature dead angle and high efficiency, water flow controller can protect electric heating in the condition of no water or less water to prevent dry heating and prolong its life, sensor will sense medium temperature and temperature controller can control the electric heating running quantity to save energy and low the consumption.

Technical Data:

ype CDRSQ-61 CDRSQ-180 CDRSQ-240 CDRSQ-360
Heating capacity
KW 18 52 70 105

btu/hr 61000 180000 240000 360000
Heating Water Flow
m3/h 3 9 12 18
Heated water pressure
Mpa 0.3 0.3 0.3 0.3
Dia of water inlet/outlet 1" 2" 2.5" 2.5"
Power supply AC380V 50HZ 3P/AC440V 60Hz 3P
Consumption Power 20 57 75 110
Dimension L mm 1054 950 1115 1420
L1 mm 807 640 807 1050
W mm 115 220 220 220
W1 mm 95 180 180 180
D mm 114 219 219 219
H mm 300 440 440 440
Weight kg 25 50 65 98
