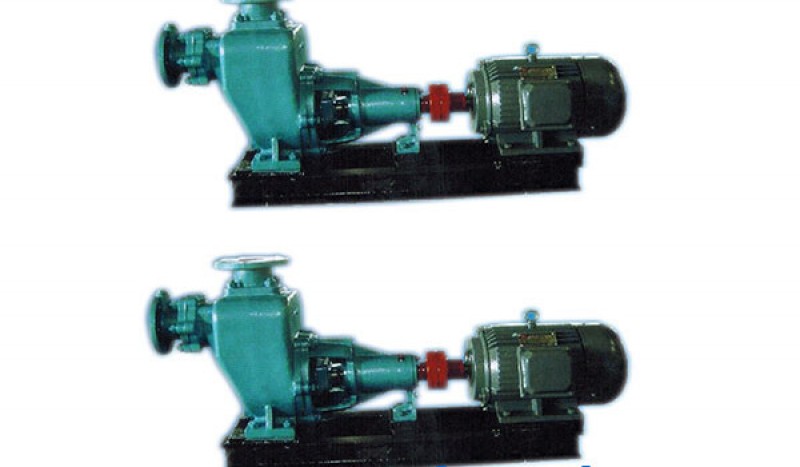

CWZ Series Marine Horizontal Self-suction Centrifugal Pump
China CWZ Series Marine Horizontal Self-suction Centrifugal Pump:
Model CWZ pump can be used to serve the purpose of cooling,fire control and sanitation,or to deliver ballast tank water of ships and various purposes of sea water that do no exceed 75℃ in temperature.
Construction of pump
Main Technical Data
| Model |
Flow rate Q（m³/h） |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 32CWZ-5 | 8 | 21 | 2950 | 1.5 |
| 32CWZ-4 | 8 | 30 | 2950 | 2.2 |
| 32CWZ-3 | 8 | 42 | 2950 | 4 |
| 40CWZ-6 | 12 | 21 | 2950 | 3.2 |
| 40CWZ-5 | 12 | 30 | 2950 | 3 |
| 40CWZ-4 | 12 | 42 | 2950 | 4 |
| 50CWZ-8 | 21 | 21 | 2950 | 3 |
| 50CWZ-6 | 21 | 30 | 2950 | 4 |
| 50CWZ-5 | 21 | 42 | 2950 | 5.5 |
| 65CWZ-11 | 36 | 21 | 2950 | 4 |
| 65CWZ-8 | 36 | 30 | 2950 | 5.5 |
| 65CWZ-6 | 36 | 42 | 2950 | 11 |
| 65CWZ-5 | 36 | 60 | 2950 | 15 |
| 80CWZ-14 | 60 | 21 | 2950 | 7.5 |
| 80CWZ-11 | 60 | 30 | 2900 | 11 |
| 80CWZ-8 | 60 | 42 | 2950 | 15 |
| 80CWZ-6 | 60 | 60 | 2950 | 22 |
| 80CWZ-5.5 | 60 | 75 | 2950 | 30 |
| 100CWZ-18 | 100 | 30 | 2950 | 11 |
| 100CWZ-14 | 100 | 21 | 2950 | 11 |
| 100CWZ-11 | 100 | 30 | 2950 | 15 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
