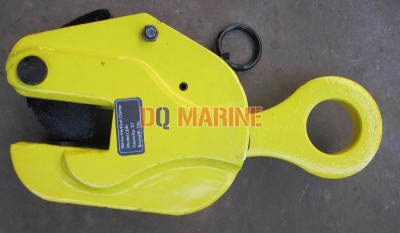

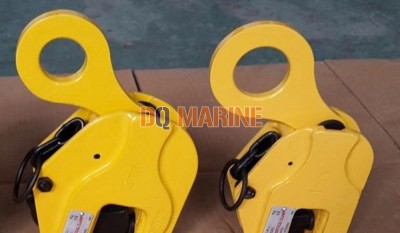

CDH Type Vertical Lifting Clamp
Introduction
Steel plate clamp is mainly used in horizontal and vertical lifting of plate, and lifting of sections and oil drum. Due to proper mechanics theory adopted, the steel plate clamp has advantages such as small size, lightweight, safe use, compact structure, easy installation and adjustment and high work efficiency.
Product Details
CDH Type Vertical Lifting Clamp sizes Details
| Model | Rated Load (T) | The Opening Area (mm) | Dead Weight (kg) |
| CDH0.8 | 0.8 | 0-16 | 2.8 |
| CDH1 | 1 | 0-22 | 3.6 |
| CDH2 | 2 | 0-30 | 5.5 |
| CDH3.2 | 3.2 | 0-40 | 10 |
| CDH5 | 5 | 0-50 | 17 |
| CDH8 | 8 | 0-60 | 26 |
| CDH10 | 10 | 0-80 | 32 |
| CDH12 | 12 | 0-90 | 48 |
| CDH16 | 16 | 60-125 | 80 |
| CDH30 | 30 | 80-220 | 125 |
