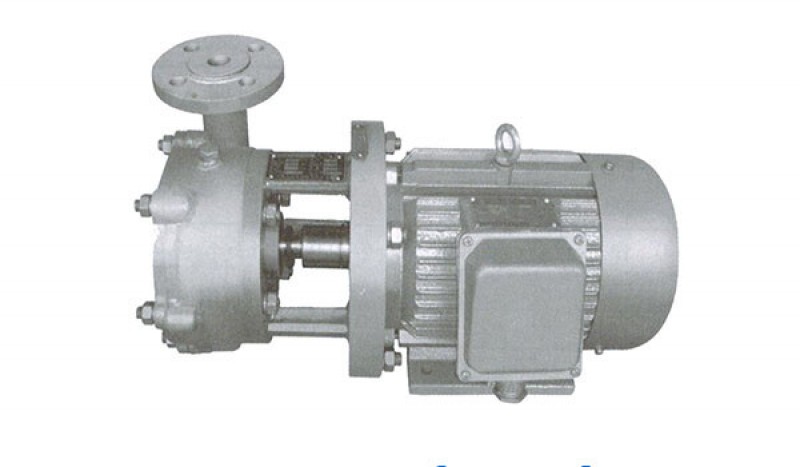

CF Sewage cutting pump
China CF Sewage cutting pump:
CF pump is a Marine horizontal centrifugal pump, and all indexes meet the requirements of "Marine domestic water crushing pump technical conditions".This pump is used for crushing and conveying soft sewage in the domestic sewage with the temperature lower than 85 degrees Celsius.The maximum particle diameter after circulation crushing is not more than 5mm, and it is also suitable for Marine heavy oil solidification and grinding at low temperature, so as to facilitate injection.
CF Sewage cutting pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| CF5-7 | 5 | 7 | 1450 | 1.5 |
| CF5-8 | 5 | 8 | 2900 | 0.75 |
| CF5-10 | 5 | 10 | 1.1 | |
| CF10-11 | 10 | 11 | 1.5 | |
| CF10-15 | 10 | 15 | 3 | |
| CF20-11 | 20 | 11 | 2.2 | |
| CF30-10 | 30 | 10 | 4 | |
| CF30-20 | 30 | 20 | 7.5 | |
| CF30-30 | 30 | 30 | 11 |
