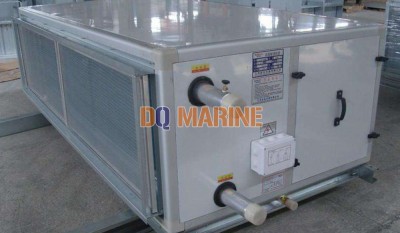

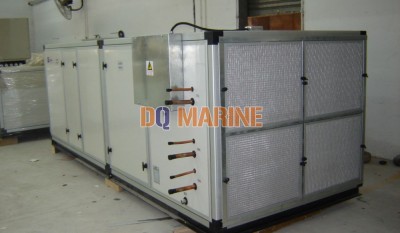

CAU-46 Main Direct Air Handling Unit
Category:
Marine Air Conditioner
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CAU-46 Main Direct Air Handling Unit:
China CAU-46 Main Direct Air Handling Unit:
Description:

CAU-46 Main direct air handling unit is the device which can deal with the temperature and humidity of the air in chamber directly.

The unit has the features of new-design, easy –operation, stable- working, safety and convenient-maintaining etc. They are widely used for all kinds of passenger ship, cargo ship, oil platform etc.

Technical Data:
Type CAU-23 CAU-35 CAU-46 CAU-58 CAU-70 CAU-82
Cooling capacity kw 23 35 46 58 70 82
Heating capacity kw 35 46 58 70 82 93
Namely air flow m3/h 2200 3200 4000 5000 6000 7000
External static pressure pa 450 600 700 1000 1200 1400
Cooling medium R22(R134a, R404A, R407C)
Heating medium 0.3-0.4Ma statured steam
Power supply Main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 61HZ
Evaporator type coper tube copper or AL fin
Fan type marine centrifugal fan
motor power kw 3 3 5.5 5.5 5.5 5.5
weight kg 650 700 850 850 1000 1250
Type CAU-93 CAU-105 CAU-116 CAU-140 CAU-151 CAU-175
Cooling capacity kw 93 105 116 140 151 175
Heating capacity kw 105 116 134 151 167 186
Namely air flow m3/h 8000 9000 10000 12000 13000 15000
External static pressure Pa 1500 1600 1650 1700 1600 1500
Cooling medium R22(R134a, R404A, R407C)
Heating medium 0.3-0.4Ma statured steam
Power supply Main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 61HZ
Evaporator type coper tube copper or AL fin
Fan type marine centrifugal fan
motor power kw 7.5 11 15 15 15 15
weight kg 1300 1400 1550 1850 1950 2150
Dimension:

Model L W H DN1 DN2 DN3 DN4
CAU-23 1850 900 1420 25 13 25 20
CAU-35 2050 900 1480 32 13 25 20
CAU-46 2250 1180 1480 40 16 25 20
CAU-58 2400 1200 1580 40 19 25 20
CAU-70 2550 1380 1680 50 19 25 20
CAU-82 2600 1380 1680 50 19 25 20
CAU-93 2600 1480 1680 50 19 25 20
CAU-105 2750 1480 1900 50 19 25 25
CAU-116 2800 1600 2000 50 19 25 25
CAU-140 2850 1720 2000 50 19 32 25

Model L W H DN1 DN2 DN3 DN4
CAU-151 3100 1750 2000 50 19 32 25
CAU-175 3200 1850 2050 50 19 40 25
CAU-186 3250 1900 2150 50 19 40 25
CAU-198 3250 2000 2180 50 19 40 25
CAU-230 3450 2050 2180 50 19 40 25
CAU-256 3450 2150 2280 50 25 40 25
CAU-267 3500 2150 2280 50 25 40 25
CAU-302 3550 2350 2380 50 25 50 32
