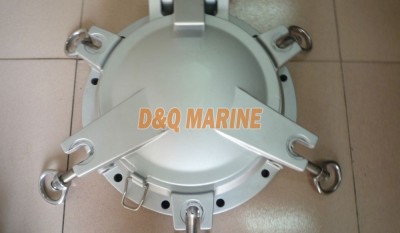

B LB TYPE SIDE SCUTTLES FOR SHIPS
Category:
Side Scuttle
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
B LB TYPE SIDE SCUTTLES FOR SHIPS:
B LB(RB) TYPE SIDE SCUTTLES FOR SHIPS:

SIZE OF CLEAR
D
D1 D2 D3 D4 D5 h t α
2 0 0 245 2 0 4 2 5 0 350 310 1 5 5 8 45°
2 5 0 250 2 5 4 3 0 5 400 364 1 8 2 8 48°
3 0 0 300 3 0 4 3 6 0 450 414 2 0 7 10 3 1°
3 5 0 350 3 5 4 4 1 0 500 464 2 3 2 12 3 2°
4 0 0 400 4 0 4 4 6 0 550 514 2 5 7 12 3 1°
450 500 454 510 600 564 282 15 3 1°
OUT OF CLIP BOLT SIZE OF OPENING
DEADLIGHT FRAME WHORL OUT
2 3 M12 8 2 5 3
2 3 M16 8 3 0 8
3 3 M16 12 3 6 3
3 3 M16 12 4 1 3
3 3 M18 12 4 6 3
3 4 M20 12 513
