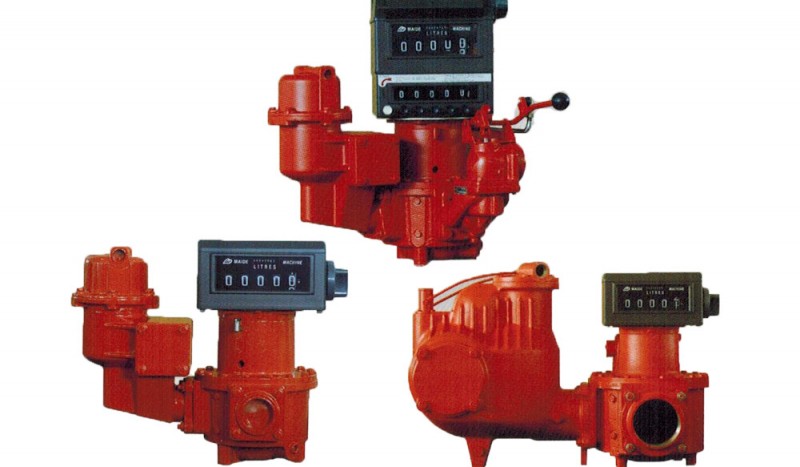

FMC Series PD Rotary Vane Flow Meter:
China FMC Series PD Rotary Vane Flow Meter:
2"Air eliminator and stainer2"Preset valve
FMC series PD rotary vane meters are single case,angle-type,rotary van,positive displacementmeters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils canbemetered.
Compct,versatile design can be readilyfit into nearly all installations.
Low pressure loss,a true gravity flow meter.
Longservice life,low friction ball bearings,fixed cam-type shaft construction give sustained accuracy and longtime operation.
Includes:blending,batching,dispensing,inventory control,and transfering of oils,solvents,chemicals,paints,fertilizer,etc.
Drawing:
Specification:
| Model | FMC-50 | FMC-80 | FMC-100 |
| Size | 50mm/2" | 80mm/3" | 100mm/4" |
| Flow rate range | 38~380L/min | 75~750L/min | 150~1500L/min |
| Max working pressure | 10Bar/150PSI | ||
| Accuracy | ±0.2% | ||
| Repeatability | ≤0.07% | ||
| Dimension | 59*34*57cm | 70*40*58cm | 83*46*65cm |
| Net weight | 42kg | 56kg | 80kg |
| Gross weight | 57kg | 70kg | 96kg |
| Package | 1PCS/WoodenCase | ||
Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
