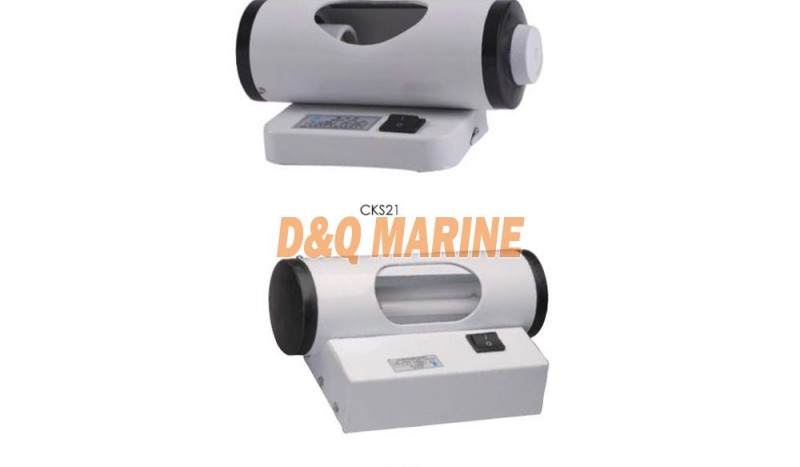

CKS21/CKS22 Bedside Lamp
The scope of application
This series products are designed as bedside lamp to use at the living room in ship cabin.
Products feature
1. The shell of light is made of high quality aluminum and cold rolled steel sheets, surface finished by white acid epoxy polyester power coating process.
2. CKS21 matched new style dimmer for steeples dimming, the range of adjust is from 30V to 218V.
3.The cable outside diameter is Φ7mm
Adopt standard and product certification
1. Conform to standard of IEC60598-1-2008.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
CKS21/CKS22 Bedside Lamp Specification
| Type | ZKS21 | CKS22 | ZKS22-B |
| Power | 25W | 7W | 25W |
| Weight(kg) | 0.8 | 1.1 | 1 |
| Voltage/Frequency | 220V/50HZ | ||
| Lamp Holder | E27 | E23 | E27 |
| Light Source | Incandescent lamp | Energy-saving lamp | Incandescent lamp |
| Protection Class | IP34 | ||
