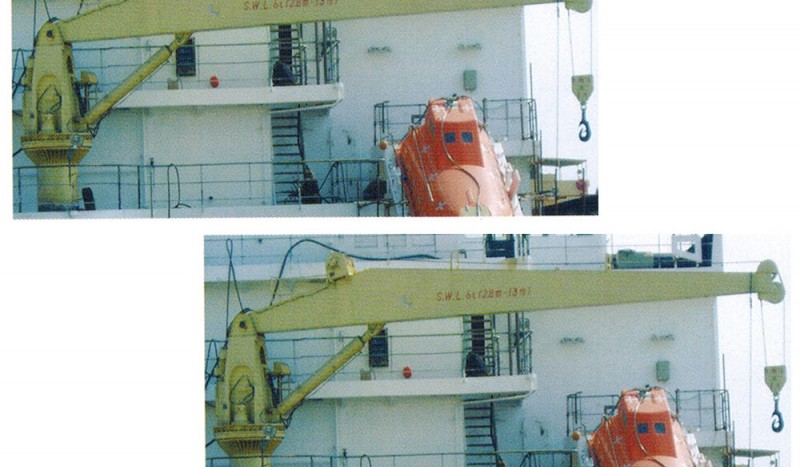

15T Electeo-hydraulic type crane(cylinder luffing crane)
2-20T Electeo-hydraulic type crane(cylinder luffing crane)
The electeo-hydraulic crane is special equipment used on marine for lifting spare parts and sundries.Design and manufacture products comply in full compliance with current and applicable rules for lifting appliance.
Drawing
-2.jpg)
-3.jpg)
Technical specifications
|
SWL （t） |
Hoisting speed (r/min) |
Slewing speed (r/min) |
List+Trim (degree) |
Motor power (kw) |
| 2 | 0-15 | 0-1 | 5+2 | 13 |
| 3 | 0-15 | 0-1 | 5+2 | 15 |
| 4 | 0-15 | 0-1 | 5+2 | 18.5 |
| 5 | 0-15 | 0-1 | 5+2 | 22.5 |
| 6 | 0-15 | 0-1 | 5+2 | 32 |
| 8 | 0-15 | 0-1 | 5+2 | 45 |
| 10 | 0-15 | 0-1 | 5+2 | 60 |
| 15 | 0-15 | 0-1 | 5+2 | 90 |
| 20 | 0-15 | 0-1 | 5+2 | 110 |
