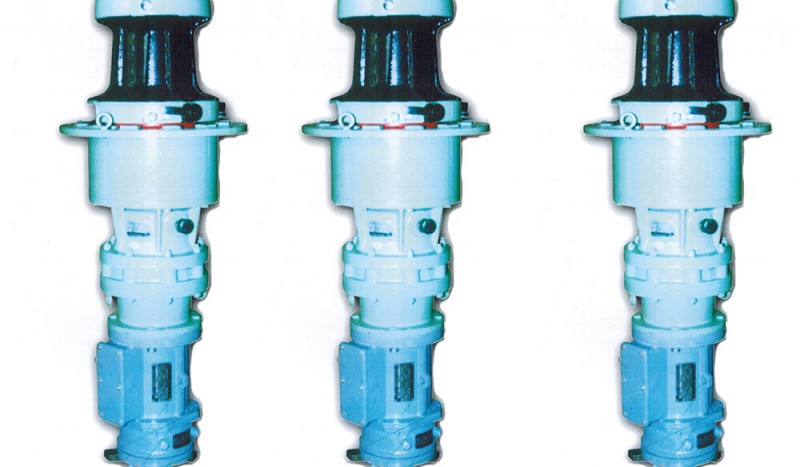

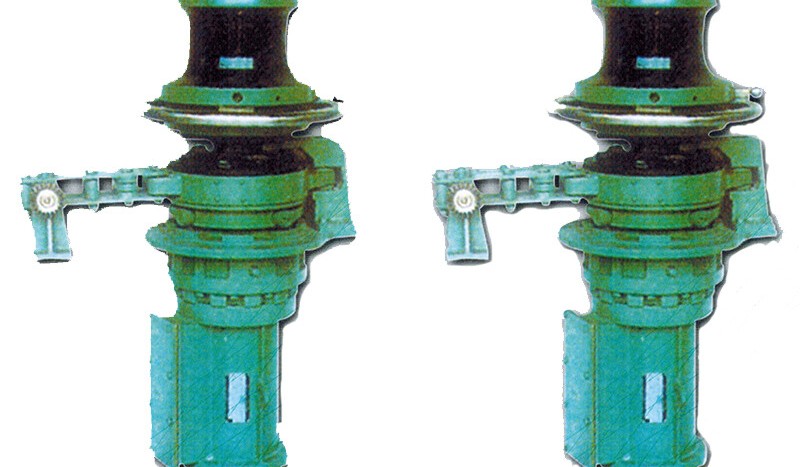

20Kn Light-duty Electric Weighing Capstan

Category: Electric capstan
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote Print Page Dowdload Page

We can supply according to your requirement.

20Kn Light-duty Electric Weighing Capstan

6-80Kn Light-duty Electric Weighing Capstan

Electric capstan is mainly used for anchoring or mooring in ships and law enforcement boats. It adopts wear-resistant marine cable drum, marine worm gear reducer, marine brake control motor, main electric control box and main controller for IP56 type and base.

Technical specifications

Working
Loads
(KN) 		Speed
(m/min) 		Wire
Dia.
(mm) 		Power
(KW)
80 15 38 60/60/45
50 15 32 45/45/30
30 18 26 30/30/22
20 18 22 22/22/16
10 18 16 16/16/11
Working
Loads
(KN) 		Speed
(m/min) 		Chain
Dia.
(mm) 		Power
(KW)
24.5/28.7 9/9.6 24/26 11/11/7.5
15.34/20.57 14.65/17 19/22 6/2.5
10.88/13.02 12.32/13.5 16/17.5 4.3/1.7
6.64/8.33 9.65/10.8 12.5/14 3/1.2
Note: Design according to client request.
