800Kn Hydraulic Capstan

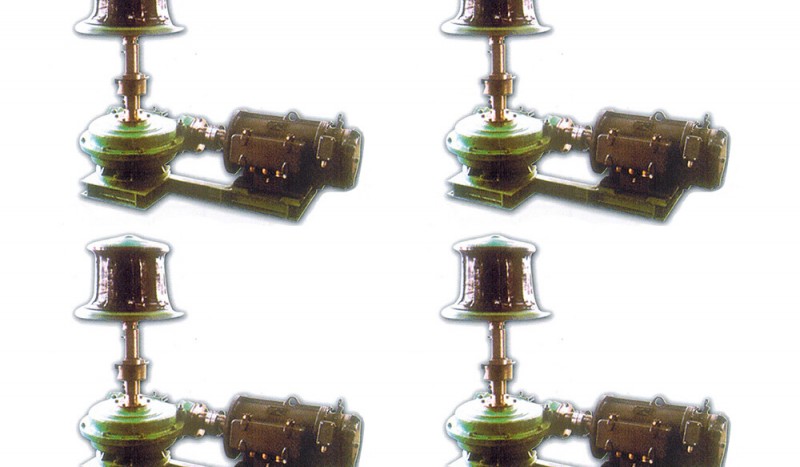

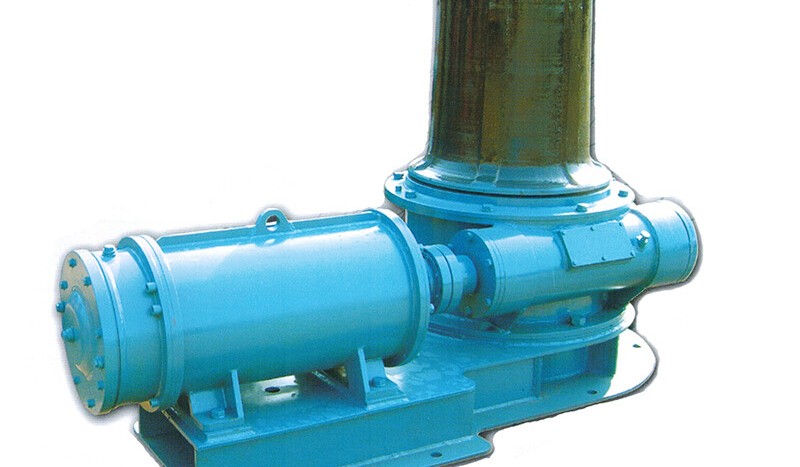

30-1000Kn Electric Capstan
Electric capstan is mainly used for anchoring or mooring in ships and law enforcement boats. It adopts wear-resistant marine cable drum, marine worm gear reducer, marine brake control motor, main electric control box and main controller for IP56 type and base.
Technical specifications
|
Working Load (KN) |
Speed (m/min) |
Wire Dia. (mm) |
Power (KW) |
| 1000 | 12 | 86 | 200 |
| 900 | 12 | 82 | 160 |
| 800 | 12 | 78 | 160 |
| 700 | 12 | 72 | 132 |
| 600 | 12 | 66 | 110 |
| 500 | 12 | 62 | 90 |
| 400 | 12 | 56 | 85/85/64 |
| 300 | 12 | 52 | 60/60/45 |
| 250 | 12 | 46 | 60/60/45 |
| 200 | 12 | 42 | 45/45/30 |
| 150 | 15 | 38 | 60/60/45 |
| 100 | 15 | 32 | 45/45/30 |
| 80 | 16 | 26 | 30/30/22 |
| 50 | 16 | 22 | 22/22/16 |
| 30 | 16 | 16 | 16/16/11 |
