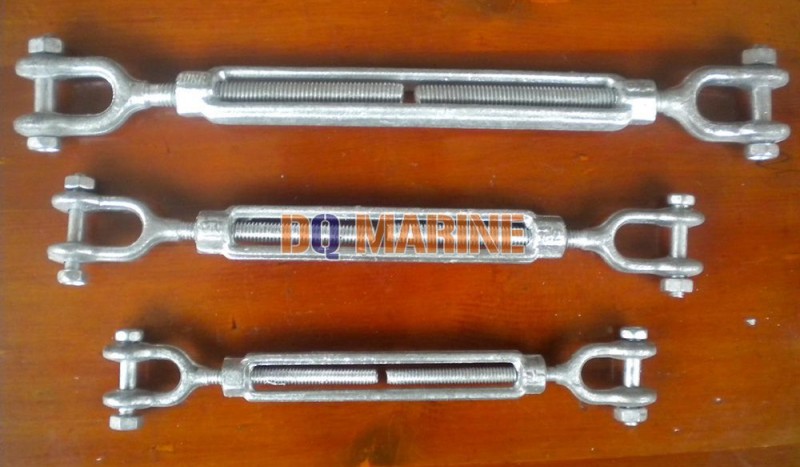

US Type Turnbuckles with Jaw and Jaw
Introduction
US Type Turnbuckles with Jaw and Jaw adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment.
Product Details
US Type Turnbuckles with Jaw and Jaw sizes table
| Size(in) | WLL (Ibs) | Weight (Ibs) | Dimensions(in) | ||||||||
| A | B | E Closed | G | J Open | K Closed | M Open | N Closed | BB | |||
| 1/4*4 | 500 | 0.36 | 0.25 | 0.41 | 1.58 | 0.62 | 10.9 | 6.9 | 11.9 | 7.9 | 4 |
| 5/16*4.1/2 | 800 | 0.52 | 0.31 | 0.47 | 1.98 | 0.87 | 12.36 | 8.36 | 13.9 | 9.4 | 4.5 |
| 3/8*6 | 1200 | 0.81 | 0.38 | 0.5 | 2.12 | 0.87 | 16.14 | 10.14 | 17.38 | 11.38 | 6 |
| 1/2*6 | 2200 | 1.5 | 0.5 | 0.63 | 2.75 | 1.06 | 17.5 | 11.5 | 19 | 13 | 6 |
| 1/2*9 | 2200 | 1.74 | 0.5 | 0.63 | 2.75 | 1.06 | 23.5 | 14.5 | 25 | 16 | 9 |
| 1/2*12 | 2200 | 2.46 | 0.5 | 0.63 | 2.75 | 1.06 | 29.5 | 17.5 | 31 | 19 | 12 |
| 5/8*6 | 3500 | 2.72 | 0.63 | 0.75 | 3.5 | 1.31 | 18.8 | 12.8 | 20.88 | 14.88 | 6 |
| 5/8*9 | 3500 | 3.24 | 0.63 | 0.75 | 3.5 | 1.31 | 24.8 | 15.8 | 26.88 | 17.88 | 9 |
| 5/8*12 | 3500 | 3.74 | 0.63 | 0.75 | 3.5 | 1.31 | 30.8 | 18.8 | 32.88 | 20.88 | 12 |
| 3/4*6 | 5200 | 4.11 | 0.75 | 0.94 | 4.18 | 1.5 | 20 | 14 | 22.6 | 16.6 | 6 |
| 3/4*9 | 5200 | 5.1 | 0.75 | 0.94 | 4.18 | 1.5 | 26 | 17 | 28.6 | 19.6 | 9 |
| 3/4*12 | 5200 | 5.65 | 0.75 | 0.94 | 4.18 | 1.5 | 32 | 20 | 34.6 | 22.6 | 12 |
| 3/4*18 | 5200 | 7 | 0.75 | 0.94 | 4.18 | 1.5 | 44 | 26 | 46.6 | 28.6 | 18 |
| 7/8*12 | 7200 | 8.17 | 0.88 | 1.13 | 4.85 | 1.75 | 33.36 | 21.36 | 36.32 | 24.32 | 12 |
| 7/8*18 | 7200 | 9.96 | 0.88 | 1.13 | 4.85 | 1.75 | 43.36 | 27.36 | 48.32 | 30.32 | 18 |
| 1*6 | 10000 | 8.56 | 1 | 1.19 | 5.53 | 2.06 | 22.72 | 16.72 | 26.06 | 20.06 | 6 |
| 1*12 | 10000 | 12 | 1 | 1.19 | 5.53 | 2.06 | 34.72 | 22.72 | 38.06 | 26.06 | 12 |
| 1*18 | 10000 | 14 | 1 | 1.19 | 5.53 | 2.06 | 46.72 | 28.72 | 50.06 | 32.06 | 18 |
| 1*24 | 10000 | 17 | 1 | 1.19 | 5.53 | 2.06 | 58.72 | 34.72 | 62.06 | 38.06 | 24 |
| 1-1/4*12 | 15200 | 21.5 | 1.25 | 1.75 | 7.21 | 2.81 | 37.34 | 25.34 | 41.54 | 29.54 | 12 |
| 1-1/4*18 | 15200 | 24.25 | 1.25 | 1.75 | 7.21 | 2.81 | 49.34 | 31.34 | 53.54 | 35.54 | 18 |
| 1-1/4*24 | 15200 | 28 | 1.25 | 1.75 | 7.21 | 2.81 | 61.34 | 37.34 | 65.54 | 41.54 | 24 |
| 1-1/2*12 | 21400 | 30.5 | 1.5 | 2.06 | 7.88 | 2.81 | 38.5 | 26.5 | 43.5 | 31.5 | 12 |
| 1-1/2*18 | 21400 | 36.75 | 1.5 | 2.06 | 7.88 | 2.81 | 50.5 | 32.5 | 55.5 | 37.5 | 18 |
| 1-1/2*24 | 21400 | 40.67 | 1.5 | 2.06 | 7.88 | 2.81 | 62.5 | 38.5 | 67.5 | 43.5 | 24 |
| 1-3/4*18 | 28000 | 55.04 | 1.75 | 2.38 | 9.4 | 3.38 | 53.38 | 35.38 | 59.18 | 41.18 | 18 |
| 1-3/4*24 | 28000 | 63.36 | 1.75 | 2.38 | 9.4 | 3.38 | 65.38 | 41.38 | 71.18 | 47.18 | 24 |
| 2*24 | 37000 | 94.25 | 2 | 2.5 | 11.86 | 3.69 | 69.54 | 45.54 | 76.72 | 52.12 | 24 |
| 2-1/2*24 | 60000 | 165 | 2.5 | 2.88 | 13.56 | 4.44 | 72.98 | 48.98 | 82.18 | 58.18 | 24 |
| 2-3/4*24 | 75000 | 198 | 2.75 | 3.5 | 15.22 | 4.19 | 74.75 | 50.75 | 85.5 | 61.5 | 24 |
