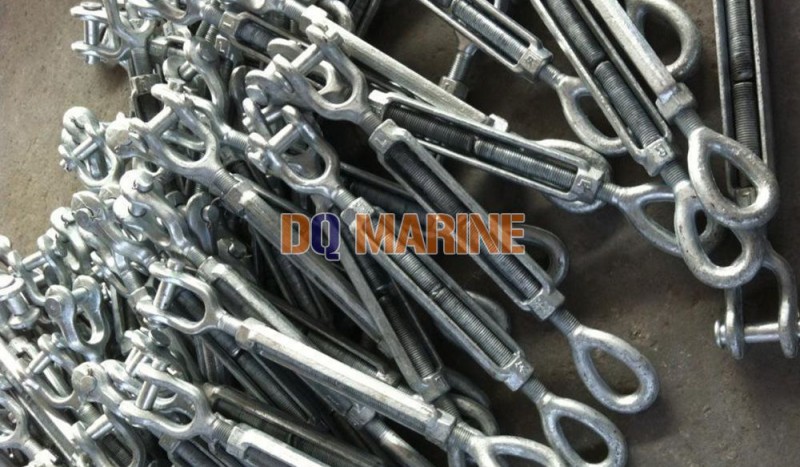

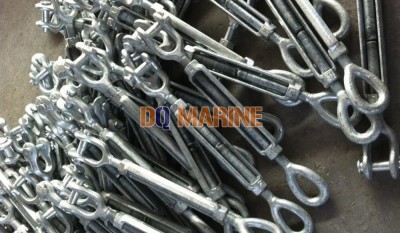

US Type Turnbuckles with Eye and Jaw
Introduction
US Type Turnbuckles with Eye and Jaw adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment.
Product Details
US Type Turnbuckles with Eye and Jaw sizes table
| Size(in) | WLL (Ibs) | Weight(lbs) | Dimensions(in) | |||||||||||
| A | D | E Closed | G | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4*4 | 500 | 0.32 | 0.25 | 0.41 | 1.58 | 0.62 | 11.35 | 7.35 | 2.07 | 8.07 | 0.78 | 0.34 | 1.75 | 4 |
| 5/16*4 1/2 | 800 | 0.47 | 0.31 | 0.47 | 1.98 | 0.87 | 13.71 | 8.71 | 14.01 | 9.51 | 0.94 | 0.44 | 2.09 | 4.5 |
| 3/8*6 | 1200 | 0.76 | 0.38 | 0.5 | 2.12 | 0.87 | 16.81 | 10.81 | 17.77 | 11.77 | 1.12 | 0.53 | 2.52 | 6 |
| 1/2*6 | 2200 | 1.53 | 0.5 | 0.63 | 2.75 | 1.06 | 18.29 | 12.28 | 19.48 | 13.48 | 1.44 | 0.72 | 3.23 | 6 |
| 1/2*9 | 2200 | 1.71 | 0.5 | 0.63 | 2.75 | 1.06 | 24.29 | 15.29 | 25.48 | 16.48 | 1.44 | 0.72 | 3.23 | 9 |
| 1/2*12 | 2200 | 2.06 | 0.5 | 0.63 | 2.75 | 1.06 | 30.29 | 18.29 | 31.48 | 19.48 | 1.44 | 0.72 | 3.23 | 12 |
| 5/8*6 | 3500 | 2.35 | 0.63 | 0.75 | 3.5 | 1.31 | 19.74 | 13.74 | 21.28 | 15.28 | 1.75 | 0.88 | 3.9 | 6 |
| 5/8*9 | 3500 | 3.06 | 0.63 | 0.75 | 3.5 | 1.31 | 25.74 | 16.74 | 27.28 | 18.28 | 1.75 | 0.88 | 3.9 | 9 |
| 5/8*12 | 3500 | 3.78 | 0.63 | 0.75 | 3.5 | 1.31 | 31.74 | 19.74 | 33.28 | 21.28 | 1.75 | 0.88 | 3.9 | 12 |
| 3/4*6 | 5200 | 4 | 0.75 | 0.94 | 4.18 | 1.5 | 21.19 | 15.19 | 23.11 | 17.11 | 2.09 | 1 | 4.69 | 6 |
| 3/4*9 | 5200 | 4.75 | 0.75 | 0.94 | 4.18 | 1.5 | 27.19 | 18.19 | 29.11 | 20.11 | 2.09 | 1 | 4.69 | 9 |
| 3/4*12 | 5200 | 5.36 | 0.75 | 0.94 | 4.18 | 1.5 | 33.19 | 21.19 | 35.11 | 23.11 | 2.09 | 1 | 4.69 | 12 |
| 3/4*18 | 5200 | 7 | 0.75 | 0.94 | 4.18 | 1.5 | 45.19 | 27.19 | 47.11 | 29.11 | 2.09 | 1 | 4.69 | 18 |
| 7/8*12 | 7200 | 8 | 0.88 | 1.13 | 4.85 | 1.75 | 34.34 | 33.34 | 36.57 | 24.57 | 2.38 | 1.25 | 5.1 | 12 |
| 7/8*18 | 7200 | 9.75 | 0.88 | 1.13 | 4.85 | 1.75 | 46.34 | 28.34 | 48.57 | 30.57 | 2.38 | 1.25 | 5.1 | 18 |
| 1*6 | 10000 | 8.92 | 1 | 1.19 | 5.53 | 2.06 | 24.34 | 18.34 | 26.89 | 20.89 | 3 | 1.44 | 6.36 | 6 |
| 1*12 | 10000 | 11.2 | 1 | 1.19 | 5.53 | 2.06 | 36.34 | 24.34 | 38.89 | 26.89 | 3 | 1.44 | 6.36 | 12 |
| 1*18 | 10000 | 13.3 | 1 | 1.19 | 5.53 | 2.06 | 48.34 | 30.34 | 50.89 | 32.89 | 3 | 1.44 | 6.36 | 18 |
| 1*24 | 10000 | 17 | 1 | 1.19 | 5.53 | 2.06 | 60.34 | 36.34 | 62.89 | 38.89 | 3 | 1.44 | 6.36 | 24 |
| 1 1/4*12 | 15200 | 20 | 1.25 | 1.75 | 7.21 | 2.81 | 38.82 | 26.82 | 42.05 | 30.05 | 3.56 | 1.81 | 7.72 | 12 |
| 1 1/4*18 | 15200 | 24.18 | 1.25 | 1.75 | 7.21 | 2.81 | 50.82 | 32.82 | 54.05 | 36.05 | 3.56 | 1.81 | 7.72 | 18 |
| 1 1/4*24 | 15200 | 28.5 | 1.25 | 1.75 | 7.21 | 2.81 | 62.82 | 38.82 | 66.05 | 42.05 | 3.56 | 1.81 | 7.72 | 24 |
| 1 1/2*12 | 21400 | 28.99 | 1.5 | 2.06 | 7.88 | 2.81 | 40.5 | 28.5 | 44.25 | 32.25 | 4.06 | 2.12 | 8.62 | 12 |
| 1 1/2*18 | 21400 | 35 | 1.5 | 2.06 | 7.88 | 2.81 | 52.5 | 34.5 | 56.25 | 38.25 | 4.06 | 2.12 | 8.62 | 18 |
| 1 1/2*24 | 21400 | 39.18 | 1.5 | 2.06 | 7.88 | 2.81 | 64.5 | 40.5 | 68.25 | 44.25 | 4.06 | 2.12 | 8.62 | 24 |
| 1 3/4*18 | 28000 | 53.75 | 1.75 | 2.38 | 9.4 | 3.38 | 55.38 | 37.38 | 59.78 | 41.78 | 4.62 | 2.38 | 10 | 18 |
| 1 3/4*24 | 28000 | 60.68 | 1.75 | 2.38 | 9.4 | 3.38 | 67.38 | 43.38 | 71.78 | 47.78 | 4.62 | 2.38 | 10 | 24 |
| 2 * 24 | 37000 | 89 | 2 | 2.5 | 11.86 | 3.69 | 72.62 | 48.62 | 77.95 | 53.95 | 5.75 | 2.69 | 13.09 | 24 |
| 2 1/2 * 24 | 60000 | 150 | 2.5 | 2.88 | 13.56 | 4.44 | 75.8 | 51.8 | 82.4 | 58.4 | 6.5 | 3.12 | 13.78 | 24 |
| 2 3/4 * 24 | 75000 | 183 | 2.75 | 2.5 | 15.22 | 4.19 | 77.88 | 53.88 | 85.5 | 61.5 | 7 | 3.25 | 15.22 | 24 |
