US Type Turnbuckles with Eye and Eye:
Introduction

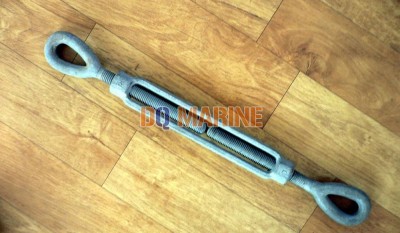

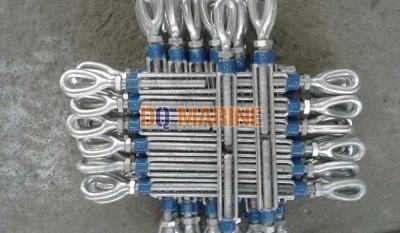

US Type Turnbuckles with Eye and Eye adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment, mainly used for the not often disassembling occasion.
Details
US Type Turnbuckles with Eye and Eye sizes table
| Size (in) | WLL (Ibs) | Weight (Ibs) | Dimensions (in) | ||||||||
| A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4 x 4 | 500 | 0.3 | 0.25 | 11.8 | 7.8 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4 |
| 5/16 x 4 1/2 | 800 | 0.47 | 0.31 | 13.56 | 9.06 | 14.12 | 9.62 | 0.94 | 0.44 | 2.09 | 4.5 |
| 3/8 x 6 | 1200 | 0.75 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.52 | 6 |
| 1/2 x 6 | 2200 | 1.6 | 0.5 | 19.08 | 13.08 | 19.96 | 13.96 | 1.44 | 0.72 | 3.23 | 6 |
| 1/2 x 9 | 2200 | 1.83 | 0.5 | 25.08 | 16.08 | 25.96 | 16.96 | 1.44 | 0.72 | 3.23 | 9 |
| 1/2 x 12 | 2200 | 2.08 | 0.5 | 31.08 | 19.08 | 31.96 | 19.96 | 1.44 | 0.72 | 3.23 | 12 |
| 5/8 x 6 | 3500 | 2.75 | 0.63 | 20.68 | 14.68 | 21.68 | 15.68 | 1.75 | 0.88 | 3.9 | 6 |
| 5/8 x 9 | 3500 | 3.13 | 0.63 | 26.68 | 17.68 | 27.68 | 18.68 | 1.75 | 0.88 | 3.9 | 9 |
| 5/8 x 12 | 3500 | 3.5 | 0.63 | 32.68 | 20.68 | 33.68 | 21.68 | 1.75 | 0.88 | 3.9 | 12 |
| 3/4 x 6 | 5200 | 3.89 | 0.75 | 22.38 | 16.38 | 23.62 | 17.62 | 2.09 | 1 | 4.69 | 6 |
| 3/4 x 9 | 5200 | 4.61 | 0.75 | 28.38 | 19.38 | 29.62 | 20.62 | 2.09 | 1 | 4.69 | 9 |
| 3/4 x 12 | 5200 | 5.43 | 0.75 | 34.38 | 22.38 | 35.62 | 23.62 | 2.09 | 1 | 4.69 | 12 |
| 3/4 x 18 | 5200 | 7.25 | 0.75 | 46.38 | 28.38 | 47.62 | 29.62 | 2.09 | 1 | 4.69 | 18 |
| 7/8 x 12 | 7200 | 8.1 | 0.88 | 35.32 | 23.32 | 36.82 | 24.82 | 2.38 | 1.25 | 5.1 | 12 |
| 7/8 x 18 | 7200 | 9.95 | 0.88 | 47.32 | 29.32 | 48.82 | 30.82 | 2.38 | 1.25 | 5.1 | 18 |
| 1x 6 | 10000 | 9.33 | 1 | 25.97 | 19.97 | 27.72 | 21.72 | 3 | 1.44 | 6.36 | 6 |
| 1 x 12 | 10000 | 11.93 | 1 | 37.97 | 25.97 | 39.97 | 27.72 | 3 | 1.44 | 6.36 | 12 |
| 1 x 18 | 10000 | 14 | 1 | 49.97 | 31.97 | 51.72 | 33.72 | 3 | 1.44 | 6.36 | 18 |
| 1 x 24 | 10000 | 17.25 | 1 | 61.97 | 37.97 | 63.72 | 39.72 | 3 | 1.44 | 6.36 | 24 |
| 1 1/4 x 12 | 15200 | 19 | 1.25 | 40.31 | 28.31 | 42.56 | 30.56 | 3.56 | 1.81 | 7.72 | 12 |
| 1 1/4 x 18 | 15200 | 23 | 1.25 | 52.31 | 34.31 | 54.56 | 36.56 | 3.56 | 1.81 | 7.72 | 18 |
| 1 1/4 x 24 | 15200 | 27 | 1.25 | 64.31 | 40.31 | 66.56 | 42.56 | 3.56 | 1.81 | 7.72 | 24 |
| 1 1/2 x 12 | 21400 | 27.5 | 1.5 | 42.5 | 30.5 | 45 | 33 | 4.06 | 2.12 | 8.62 | 12 |
| 1 1/2 x 18 | 21400 | 31 | 1.5 | 54.5 | 36.5 | 57 | 39 | 4.06 | 2.12 | 8.62 | 18 |
| 1 1/2 x 24 | 21400 | 37.5 | 1.5 | 66.5 | 42.5 | 69 | 45 | 4.06 | 2.12 | 8.62 | 24 |
| 1 3/4 x 18 | 28000 | 52.5 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.62 | 2.38 | 10 | 18 |
| 1 3/4 x 24 | 28000 | 58 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.62 | 2.38 | 10 | 24 |
| 2 x 24 | 37000 | 85.25 | 2 | 75.69 | 51.69 | 79.19 | 55.19 | 5.75 | 2.69 | 13.09 | 24 |
| 2 1/2 x 24 | 60000 | 144.3 | 2.5 | 78.62 | 54.62 | 82.62 | 58.62 | 6.5 | 3.12 | 13.78 | 24 |
| 2 3/4 x 24 | 75000 | 194 | 2.75 | 81 | 57 | 85.5 | 61.5 | 7 | 3.25 | 15.22 | 24 |
