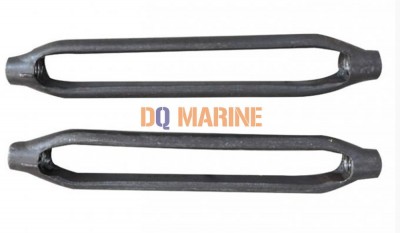

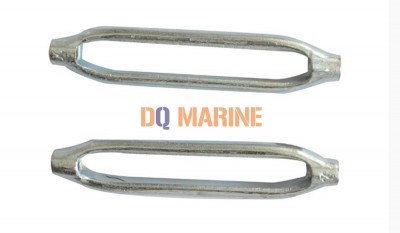

US Type Turnbuckles Body Only:
Introduction
US Type Turnbuckles body adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment.
Product Details
US Type Turnbuckles bodysizes table
| Thread Dia & Take up (in) | WLL (lbs) | Weight (lbs) | Dimensions(in) | |||||||
| AA | BB | CC | DD | EE | GG | HH | JJ | |||
| 1/4*4 | 500 | 0.15 | 4.75 | 4 | 0.38 | 0.72 | 0.34 | 0.5 | 0.38 | 0.71 |
| 5/16*4 1/2 | 800 | 0.19 | 5.44 | 4.5 | 0.47 | 0.81 | 0.38 | 0.56 | 0.44 | 0.19 |
| 3/8*6 | 1200 | 0.29 | 7.12 | 6 | 0.56 | 0.88 | 0.38 | 0.62 | 0.5 | 0.19 |
| 1/2*6 | 2200 | 0.6 | 7.5 | 6 | 0.75 | 1.12 | 0.5 | 0.81 | 0.62 | 0.25 |
| 1/2*9 | 2200 | 0.68 | 10.5 | 9 | 0.75 | 1.12 | 0.5 | 0.81 | 0.62 | 0.25 |
| 1/2*12 | 2200 | 1 | 13.5 | 12 | 0.75 | 1.12 | 0.5 | 0.81 | 0.62 | 0.25 |
| 5/8*6 | 3500 | 0.9 | 7.88 | 6 | 0.94 | 1.38 | 0.62 | 1 | 0.75 | 0.31 |
| 5/8*9 | 3500 | 1.18 | 10.88 | 9 | 0.94 | 1.38 | 0.62 | 1 | 0.75 | 0.31 |
| 5/8*12 | 3500 | 1.43 | 13.88 | 12 | 0.94 | 1.38 | 0.62 | 1 | 0.75 | 0.31 |
| 3/4*6 | 5200 | 1.3 | 8.25 | 6 | 1.12 | 1.69 | 0.75 | 1.12 | 0.94 | 0.38 |
| 3/4*9 | 5200 | 1.75 | 11.25 | 9 | 1.12 | 1.69 | 0.75 | 1.12 | 0.94 | 0.38 |
| 3/4*12 | 5200 | 2.08 | 14.25 | 12 | 1.12 | 1.69 | 0.75 | 1.12 | 0.94 | 0.38 |
| 3/4*18 | 5200 | 2.5 | 20.25 | 18 | 1.12 | 1.69 | 0.75 | 1.12 | 0.94 | 0.38 |
| 7/8*12 | 7200 | 2.7 | 14.62 | 12 | 1.31 | 1.94 | 0.88 | 1.31 | 1.06 | 0.44 |
| 7/8*18 | 7200 | 3.8 | 20.62 | 18 | 1.31 | 1.94 | 0.88 | 1.31 | 1.06 | 0.44 |
| 1*6 | 10000 | 2.48 | 9 | 6 | 1.5 | 2.25 | 1 | 1.5 | 1.25 | 0.5 |
| 1*12 | 10000 | 3.93 | 15 | 12 | 1.5 | 2.25 | 1 | 1.5 | 1.25 | 0.5 |
| 1*18 | 10000 | 5.28 | 21 | 18 | 1.5 | 2.25 | 1 | 1.5 | 1.25 | 0.5 |
| 1*24 | 10000 | 7.38 | 27 | 24 | 1.5 | 2.25 | 1 | 1.5 | 1.25 | 0.5 |
| 1 1/4*12 | 15200 | 5.25 | 15.12 | 12 | 1.56 | 2.62 | 1.25 | 1.88 | 1.5 | 0.56 |
| 1 1/4*18 | 15200 | 7.75 | 21.12 | 18 | 1.56 | 2.62 | 1.25 | 1.88 | 1.5 | 0.56 |
| 1 1/4*24 | 15200 | 10.17 | 27.12 | 24 | 1.56 | 2.62 | 1.25 | 1.88 | 1.5 | 0.56 |
| 1 1/2*12 | 21400 | 8.75 | 15.75 | 12 | 1.88 | 3 | 1.5 | 2.25 | 1.75 | 0.62 |
| 1 1/2*18 | 21400 | 11 | 21.75 | 18 | 1.88 | 3 | 1.5 | 2.25 | 1.75 | 0.62 |
| 1 1/2*24 | 21400 | 13.69 | 27.75 | 24 | 1.88 | 3 | 1.5 | 2.25 | 1.75 | 0.62 |
| 1 3/4*18 | 28000 | 16.38 | 22.38 | 18 | 2.09 | 3.62 | 1.75 | 2.62 | 2.12 | 0.75 |
| 1 3/4*24 | 28000 | 21.25 | 28.38 | 24 | 2.19 | 3.62 | 1.75 | 2.62 | 2.12 | 0.75 |
| 2*24 | 37000 | 27.6 | 29 | 24 | 2.5 | 4.12 | 2 | 3 | 2.38 | 0.88 |
| 2 1/2*24 | 60000 | 54 | 31.06 | 24 | 3.53 | 5.62 | 2.75 | 3.88 | 3.12 | 1.25 |
| 2 3/4*24 | 75000 | 54 | 31.06 | 24 | 3.53 | 5.62 | 2.75 | 3.88 | 3.12 | 1.25 |
