Axial-Flow Fan:
China Axial-Flow Fan:
T40-type axial-flow fan is used in general factory,warehouse,office and residential building for ventilating or facilitating heating dissipation.The axial fan can be used as a free fan or also be installed in parallel inside a longer exhaust pipeline to enhance the wind pressure when its housing is removed.Based on cusomers'demands,all the products of this series(model:KT40) can adopt the drive mode with external belt of motor(the motor is located on the casing)in structural design,It is similar to T40 fan in performance parameters,and can also realize required performances by changing rotation speed according to the customers'demands.Moreover,its maximum function is to discharge high-temperature or damp-proof gas.
Specification:
| machine（No） | rolation speed(r/min) | matching motor(kW) | volume flow(m³/h) | total pressure（Pa) | noise dB(A) |
| 2.5 | 2900 | 0.18 | 2009 | 149 | 71 |
| 1450 | 0.04 | 1009 | 37 | 56 | |
| 3 | 2900 | 0.37 | 3481 | 215 | 76 |
| 1450 | 0.09 | 1739 | 54 | 61 | |
| 3.5 | 2900 | 0.75 | 5519 | 292 | 80 |
| 1450 | 0.09 | 2761 | 74 | 65 | |
| 4 | 2900 | 1.5 | 8240 | 382 | 84 |
| 1450 | 0.25 | 4118 | 95 | 69 | |
| 5 | 1450 | 0.75 | 8050 | 149 | 75 |
| 960 | 0.25 | 5332 | 66 | 66 | |
| 6 | 1450 | 1.5 | 13900 | 215 | 80 |
| 960 | 0.55 | 9202 | 94 | 72 | |
| 7 | 1450 | 3 | 22100 | 294 | 81 |
| 960 | 0.75 | 14602 | 128 | 75 | |
| 8 | 1450 | 5.5 | 33001 | 381 | 83 |
| 960 | 1.5 | 21800 | 168 | 79 | |
| 9 | 960 | 3 | 31100 | 212 | 80 |
| 10 | 960 | 5.5 | 42700 | 262 | 82 |

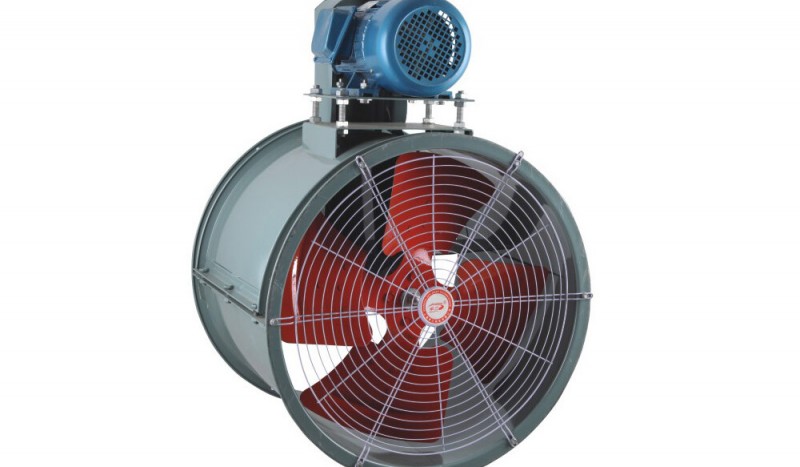

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
