Axial-Flow Fans:
China Axial-Flow Fans:
The axial-flow fans of type T35-11,BT35 and FT35 is a replacement of type-30K4 products.Base on the analysis and comparison with the foreign similar products abroad,Type-T35 has optimized the design of its fan impeller structure,improved its motor design and reduced the flow loss of its structure,there by the efficiency of its air blower has been increased by 89.5% as well as the noise level decreased by 3.6dB than rate A,and its enhanced strength of root fans has also prevented effectively from blade fractrue.The fans of this series are applied to transfer the non-flammable and nonexplosive gas without correosion and obvious dusts,with its temperature lower than 60℃.It is widely used for ventilating or increasing hea-ting emission in normal factories,storages,offices and houses.Its interval installation in vent pipes can increase pressure in the pipe.BT35-11 is an explosive gas and other escaping gas.FT35-11 is an anti-corrosion axial-flow fan,used for corrosive gas delivery,with its functional parameters same to that of T35-11.
Specification:
| machine(No) | rotation speed(r/min) | matching motor(kW) | volume flow(m³/h） | total pressure(Pa) | noise dB(A) |
| 2.8 | 2900 | 0.25 | 2921 | 186 | 74 |
| 1450 | 0.09 | 1464 | 48 | 60 | |
| 3.15 | 2900 | 0.37 | 4141 | 237 | 78 |
| 1450 | 0.12 | 2072 | 59 | 63 | |
| 3.55 | 2900 | 0.75 | 5965 | 300 | 81 |
| 1450 | 0.18 | 2977 | 74 | 66 | |
| 4 | 2900 | 1.1 | 8513 | 380 | 84 |
| 1450 | 0.25 | 4263 | 95 | 69 | |
| 4.5 | 1450 | 0.37 | 6070 | 121 | 72 |
| 5 | 1450 | 0.55 | 8327 | 149 | 75 |
| 960 | 0.37 | 5566 | 64 | 66 | |
| 5.6 | 1450 | 1.1 | 11682 | 186 | 77 |
| 960 | 0.37 | 7742 | 81 | 69 | |
| 6.3 | 1450 | 1.5 | 16639 | 236 | 81 |
| 960 | 0.75 | 11016 | 104 | 72 | |
| 7.1 | 1450 | 3 | 23815 | 300 | 83 |
| 960 | 0.75 | 15766 | 131 | 76 | |
| 8 | 1450 | 5.5 | 34073 | 380 | 85 |
| 960 | 1.5 | 22556 | 167 | 78 | |
| 9 | 960 | 3 | 32119 | 211 | 81 |
| 10 | 960 | 4 | 44062 | 267 | 82 |
| 11.2 | 960 | 7.5 | 61091 | 337 | 86 |

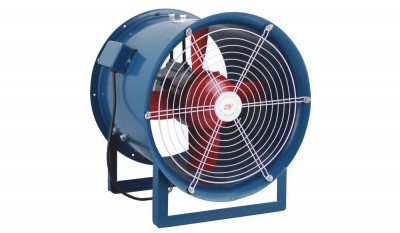

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
