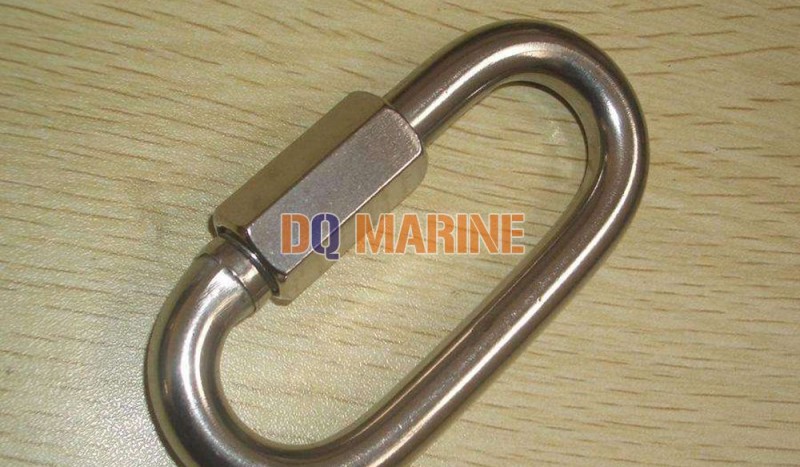

Stainless Steel Quick Link
Stainless Steel Quick Link Introduction
Material: AISI304/AISI316
Used for quick link, also for the fittings of climbing.
The Product Detail
| Size (ФS) | A | B | L | BL | WT |
| mm | mm | mm | mm | KG | KG |
| 3.5 | 4.5 | 10 | 36.5 | 190 | 0.01 |
| 4 | 5.5 | 11 | 42 | 560 | 0.012 |
| 5 | 6.5 | 13 | 50 | 730 | 0.021 |
| 6 | 7.5 | 15 | 60 | 1000 | 0.037 |
| 7 | 8.5 | 16 | 65 | 1360 | 0.06 |
| 8 | 10.5 | 18 | 75 | 1750 | 0.08 |
| 9 | 11.5 | 17 | 82 | 2300 | 0.11 |
| 10 | 12.5 | 21 | 91 | 2600 | 0.14 |
| 12 | 14.5 | 24 | 107 | 2800 | 0.23 |
| 14 | 17 | 26 | 125 | 3200 | 0.37 |
