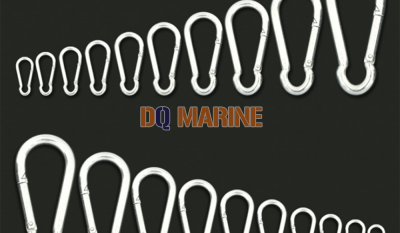

Snap Hook DIN5299C:
Snap Hook DIN5299C Introduction
The material: AISI304/AISI316
Used for quick link and must fittings for outdoor climbing.
The Product Detail
| Size(ФA) | B | C | D | F | BL | WT |
| mm | mm | mm | mm | mm | KG | KG |
| 4 | 20 | 40 | 7 | 7 | 200 | 0.008 |
| 5 | 25 | 50 | 8 | 7 | 240 | 0.016 |
| 6 | 30 | 60 | 9 | 8 | 240 | 0.03 |
| 7 | 35 | 70 | 10 | 8 | 360 | 0.043 |
| 8 | 40 | 80 | 12 | 9 | 450 | 0.063 |
| 9 | 45 | 90 | 12 | 10 | 500 | 0.09 |
| 10 | 50 | 100 | 15 | 11 | 650 | 0.121 |
| 11 | 57 | 120 | 18 | 16 | 850 | 0.185 |
| 12 | 67 | 140 | 20 | 19 | 1000 | 0.26 |
| 13 | 74 | 160 | 22 | 25 | 1100 | 0.35 |
| 14 | 86 | 180 | 22 | 35 | 1200 | 0.47 |
