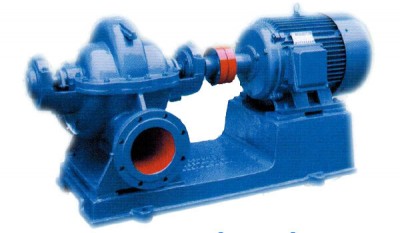

S Sh Series Marine Single Stage Suction Centrifugal Pump:
China S Sh Series Marine Single Stage Suction Centrifugal Pump:
Type S and Sh single-stage double-suction centrifugal pump with inner casing for pumping water or other liquids similar to water in physical and chemical properties.The temperature of the liquid to be delivered shall not be higher than 80 ℃.Suitable for factories, mines, urban water supply, power stations, farmland irrigation and drainage and various water conservancy projects.
S，Sh Series Marine Single Stage Suction Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 100S90 | 80 | 90 | 2950 | 37 |
| 100S90A | 72 | 75 | 2950 | 30 |
| 150S100 | 160 | 100 | 2950 | 75 |
| 150S78 | 144 | 78 | 2950 | 55 |
| 150S78A | 160 | 62 | 2950 | 45 |
| 150S50 | 160 | 50 | 2950 | 37 |
| 150S50A | 144 | 40 | 2950 | 30 |
| 150S50B | 133 | 36 | 2950 | 22 |
| 200S95 | 280 | 95 | 2950 | 110 |
| 200S95A | 280 | 75 | 2950 | 90 |
| 200S63 | 280 | 63 | 2950 | 75 |
| 200S63A | 280 | 46 | 2950 | 55 |
| 200S42 | 270 | 45 | 2950 | 45 |
| 200S42A | 280 | 36 | 2950 | 37 |
| 250S65 | 485 | 65 | 1450 | 132 |
| 250S65A | 468 | 54 | 1450 | 110 |
| 250S39 | 485 | 39 | 1450 | 75 |
| 250S39A | 468 | 30.5 | 1450 | 55 |
| 250S24 | 485 | 24 | 1450 | 45 |
| 250S24A | 441 | 20.3 | 1450 | 37 |
| 250S14 | 485 | 14 | 1450 | 30 |
| Also have bigger pumps, pls contact us for more information. | ||||
