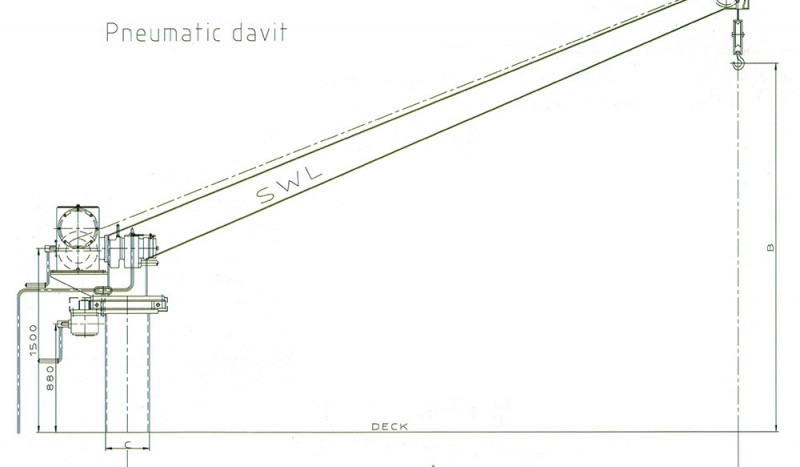

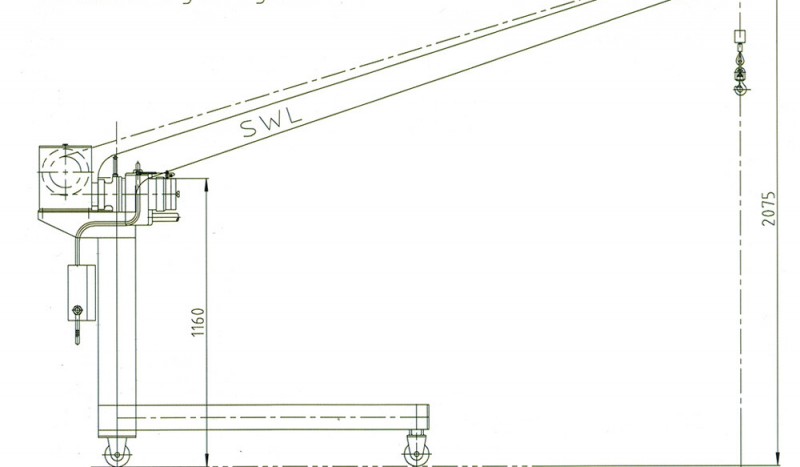

Pneumatic davit
Pneumatic davit
The pneumatic davit is special equipment used on marine for lifting cargo.Design and manufacture products comply in full compliance with current and applicable rules for lifting appliance.
Technical specifications
| Safe Working Load | 0.1-0.4t | ||
| Slewing Radius | 1-2.5m | ||
| Height of Lift | 25m | ||
| Hook Speed(Air Operated) | 1-6m/min | ||
| Wire Rope Diameter | Φ6-8mm | ||
| Heel/Trim | 5°/2° |
| Safe Working Load | 0.5-2t | ||
| Slewing Radius | 2-5m | ||
| Free Height Below Hook | 1.5-3m | ||
| Height of Lift | 25m | ||
| Hook Speed(Air Operated) | 6m/min | ||
| Slewing Angle | 300° | ||
| Slewing Speed | Manual Operated | ||
| Heel/Trim | 5°/2° |
