NEK606 Instrumentation Cables S11 RU(i) 250V
Category:
NEK 606 Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NEK606 Instrumentation Cables S11 RU(i) 250V:
Applications

These unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376 IEC 60092-351

IEC 60092-359 IEC 60332-1

IEC 60332-3-22 IEC 60754-1,2

IEC 61034-1,2 NEK 606:2004

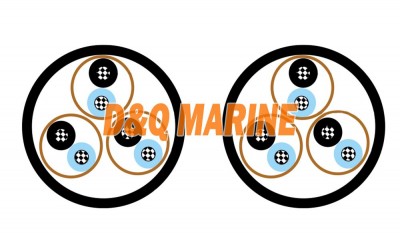

Construction
  • Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  • Insulation : Halogen free EPR compound.
  • Twinning : Colour coded cores twisted together.
  • Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  • Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Technical data:
Nominal Cross Section Area mm² 0.75 1 1.5 2.5
Nominal Conductor Diameter mm 1.1 1.3 1.6 2
Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
Mutual Capacitance nF/km 90 100 110 120
Nominal Inductance@1KHz MH/km 0.686 0.649 0.637 0.598
Maximum L/R@1KHz μH/Ω 20 25 35 50
Operating Voltage V 250 250 250 250
Mechanical and Thermal Properties
  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃
