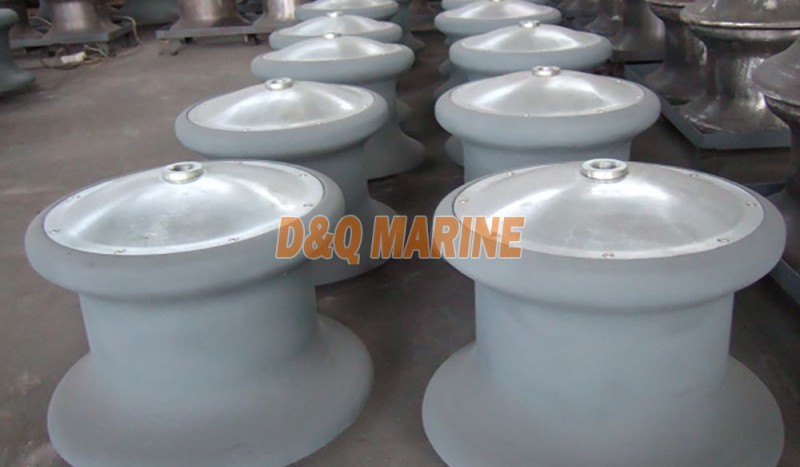

JISF2014 Japanese Standard Marine Roller
JISF2014 Japanese Standard Marine Roller
Description:
Its Chinese standard number is CB58-83 Fairlead roller.
In order to make the roller can be suitable for client use easily,unless client have special requirement,we painting the primer paint only.
Available certificate: ABS, BV, LR,NK, CCS,mill certificate etc.
The roller is endurable use.
Drawing:
Size Chart:
| JIS F2014-1987 fairlead roller/CB58-83 Fairlead roller | |||||
| Product No. | Nominal | Weight KG | |||
| Size(mm) | d | H | Cast iron | Cast steel | |
| C5R-001 | 100 | 48 | 128 | 9.4 | 9.9 |
| C5R-002 | 150 | 71 | 211 | 32.1 | 33.8 |
| C5R-003 | 200 | 95 | 251 | 64.6 | 68 |
| C5R-004 | 250 | 107 | 298 | 108 | 114 |
| C5R-005 | 300 | 127 | 321 | 159 | 168 |
| C5R-006 | 350 | 144 | 346 | 235 | 248 |
| C5R-007 | 400 | 161 | 371 | 336 | 355 |
| C5R-008 | 450 | 180 | 394 | 413 | 462 |
