NEK 606 S4 or S4/S8 BFOU(c) 250V Marine Cable:
NEK 606 S4 or S4/S8 BFOU(c) 250V Marine Cable
Applications
ENK 606 250V S4/S8 BFOU(c) cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.
Standards
|
IEC 60092-376 |
IEC 60092-351 |
|
IEC 60092-359 |
IEC 60332-1 |
|
IEC 60332-3-22 |
IEC 60754-1,2 |
|
IEC 61034-1,2 |
NEK 606:2004 |
|
IEC 60331-21 |
-250V-Marine-Cable-1.jpg)

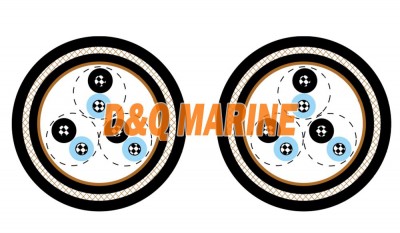

Construction
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE S4). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).
Technical Data
| Nominal Cross Section Area | mm² | 0.75 | 1 | 1.5 | 2.5 |
| Nominal Conductor Diameter | mm | 1.1 | 1.3 | 1.6 | 2 |
| Maximum Resistant@20℃ | Ω/km | 26.3 | 19.3 | 12.9 | 8.02 |
| Mutual Capacitance | nF/km | 75 | 80 | 85 | 95 |
| Nominal Inductance@1KHz | MH/km | 0.727 | 0.686 | 0.667 | 0.623 |
| Maximum L/R@1KHz | μH/Ω | 20 | 25 | 35 | 55 |
| Operating Voltage | V | 250 | 250 | 250 | 250 |
Mechanical and Thermal Properties
| Nominal Cross Section Area | mm² | 0.75 | 1 | 1.5 | 2.5 |
| Nominal Conductor Diameter | mm | 1.1 | 1.3 | 1.6 | 2 |
| Maximum Resistant@20℃ | Ω/km | 26.3 | 19.3 | 12.9 | 8.02 |
| Mutual Capacitance | nF/km | 75 | 80 | 85 | 95 |
| Nominal Inductance@1KHz | MH/km | 0.727 | 0.686 | 0.667 | 0.623 |
| Maximum L/R@1KHz | μH/Ω | 20 | 25 | 35 | 55 |
| Operating Voltage | V | 250 | 250 | 250 | 250 |
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
