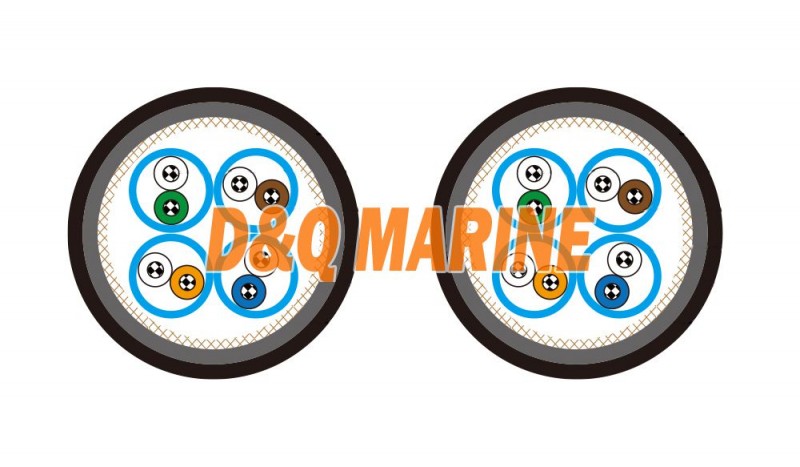

Mud Resistant Cat 5e S/FTP MariLan Marine Lan Data & Communication Cables
Category:
Mooring Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Mud Resistant Cat 5e S/FTP MariLan Marine Lan Data & Communication Cables:
Mud Resistant Cat 5e S/FTP MariLan Marine Lan Data & Communication Cables:
Basic Parameters

Cable Feature: This cables can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz. additional flame retardant, halogen-free, low smoke MUD protecting outer sheaths.

Bending Radius: 8×OD (during installation); 4×OD (fixed installed)

Temperature Range: -40℃ ~ +85℃

Stanards

EN 50173-1, EN 50288-2-1, ISO/IEC 11801, IEC 61156-5 ,IEC 60332-3-24, IEC 60754-1/2 ,IEC 61034-1/2.

Construction

Conductors: Stranded copper conductor.

Insulation: PE.

Twinning: Two coloured insulated conductors twisted together to form a pair.

Individual Screen: Al/polyester tape.

Overall Screen: Tinned copper wire braid.

Inner Sheath: Oil resistant, flame retardant and halogen free LSOH (SHF1).

Outer Sheath: MUD protecting.
