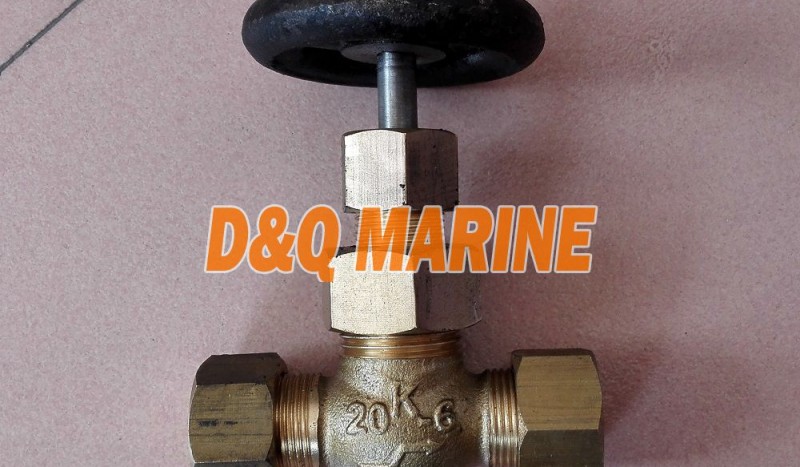

Bronze 20K Ferrule Globe Valve for Marine Use JIS F7388 U Type

Bronze 20K Ferrule Globe Valve for Marine Use JIS F7388 U Type

China Bronze 20K Ferrule Globe Valve for Marine Use JIS F7388 U Type:

Bronze 20K Globe Valve for Marine Use JIS F7388 is a kind of ferrule type valve, used to connect the small size pipe, and shut off and turn on the medium in the pipeline. There are S type and U type.

Technical Specification:

1. Design and Manufacturing Standard: JIS F7388

2. Suitable Medium: Steam, Fresh Water, Fuel Oil and Lubrication Oil

3. Hydraulic Test Pressure: Body-4.20Mpa, Seat-3.08Mpa

4. Max Working Pressure: 1.6Mpa for Steam of 205℃or less, 2.0Mpa for air, gas, oil and plusation water, 2.8Mpa for non-shock water of 120℃ or less.

Main Material:

1-Body: Bronze (BC6)

2-Plug: Bronze (BC6)

3-Stem: Brass (C3771BD)

Main Data for Joining(mm):
