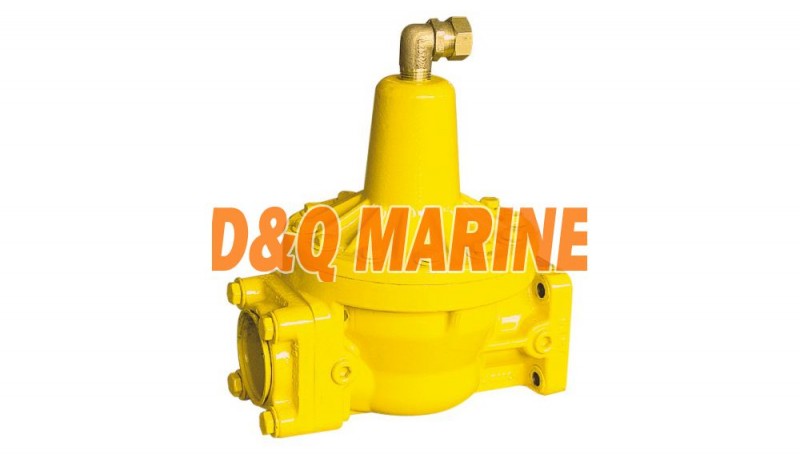

V-50-LPG Differential Valve
V-50-LPG Differential Valve
V-50-LPG Differential Valve mounted on the meter outlet and connected at the valve to the vapor eliminator on the meter with function to stop liquid flow whenever vapor is present in the system. The valve maintains sufficient pressure to ensure that high-vapor pressure products such as LPG or anhydrous ammonia(NH3) always remain in the liquid state. The valve is spring loaded and designed to fail closed.
Technical parameter:
| Model | V-50-LPG |
| Size | 2" |
| Max.flowrate | 760L/min |
| Working pressure | 25Bar/350PSI |
| Material | Aluminum |
| Used with meter | M-50 |
