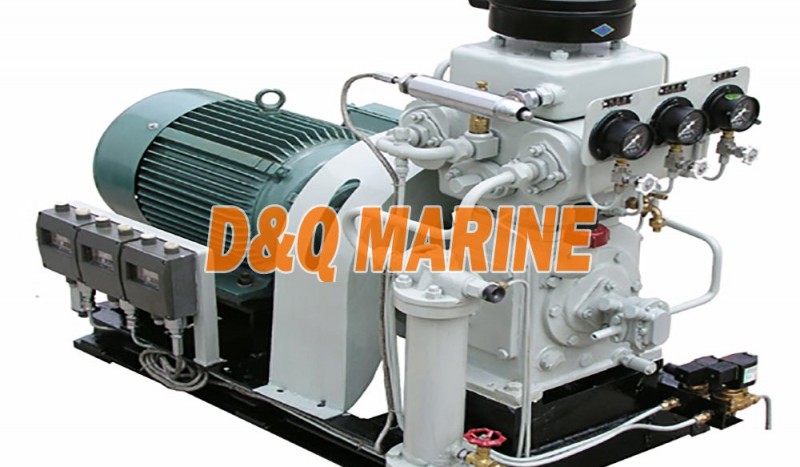

CZS Marine Air compressor
China CZS Marine Air compressor:
1. Main Function
CZS series air compressors are mainly used for vessels and stationary diesel engine pneumatic, origin and industrial pressure test, wharf, airport, exploration, origin, such as health care, the required air compressor.
2.Institutional characteristics
CZS series compressor is vertical, water cooled, two stage compression, compact structure, light weight, small size, suitable for Marine work normally under special conditions.
3.
Base mounting dimensions:
Main Technical Parameter:
| Compressor Model | CZS | |||
| Type | Vertical Water-Cooled 2 stage Compression | |||
| Quantity of Air Supply (m3/h) | 25 | 29 | 36 | 45 |
| Pressure Rating (MPa) | 3 | |||
| Stalk Power (kw) | 6.4 | 7 | 9.8 | 10.4 |
| Rotation Rating (r/min) | 870 | 960 | 1170 | 1460 |
| Quantity of Cooling Water(m3/h) | 0.54 | 0.6 | 0.72 | 0.9 |
| Lubricating System | Splash Lubrication | |||
| Lubricate Trademark | L-DAB-100（GB12691) | |||
| Type of Unloader | Manual,Total closure suction type or Magnetic Unloader Valve | |||
| Method of Driving | Direct Coupling | |||
| Motor | ||||
| model | Y160L-8-H | Y160M-6-H | Y160L-6-H | Y160M-4-H |
| Power (kw) | 7.5 | 7.5 | 11 | 11 |
| Rotation (r/min) | 870 | 960 | 1170 | 1460 |
| Gradeprotection | IP44 | |||
| Ins Class | B | |||
| Voltage(V) | 440 | 380 | 440 | 380 |
| Frequency( HZ) | 60 | 50 | 60 | 50 |
| Shape size(mm) | 1120×556×900 | |||
| Weight(kg) | 320 | 340 | ||
