MRE-M2X(St)CH Mica Tape & XLPE Insulated Overall Screened & Armoured Fire Cables

MRE-M2X(St)CH Mica Tape & XLPE Insulated Overall Screened & Armoured Fire Cables

Basic Parameters

Cable Feature:150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Fire Resistant Multipair/Multitriple.

Low Smoke & Halogen Free

Bending Radius: 4×OD
Temperature Range: -30℃ ~ +80℃

Standards

IEC 60092-350/351/376/359, IEC 60331-21, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034.

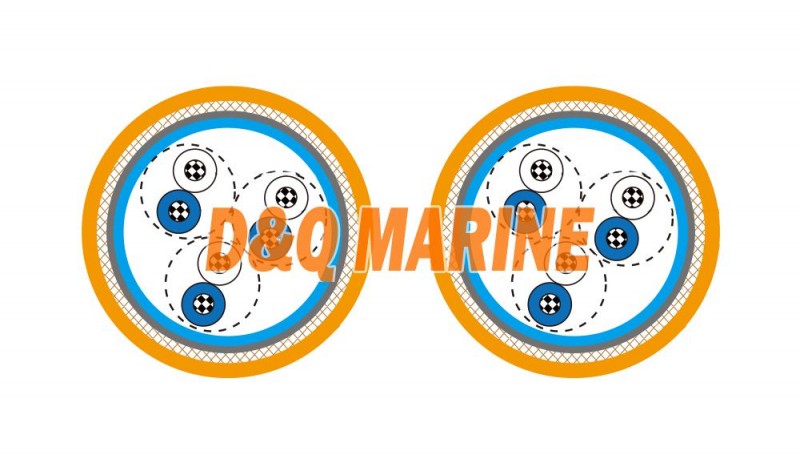

Construction

Conductors: Class 2 stranded copper conductor.

Insulation: Mica tape + XLPE insulation.

Cabling Element: Pair/Triple.

Overall Screen: Al/polyester tape.

Drain Wire: Tinned copper wire.

Inner Covering: Lapped polyester tape.

Armour: Copper wire braid.

Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
