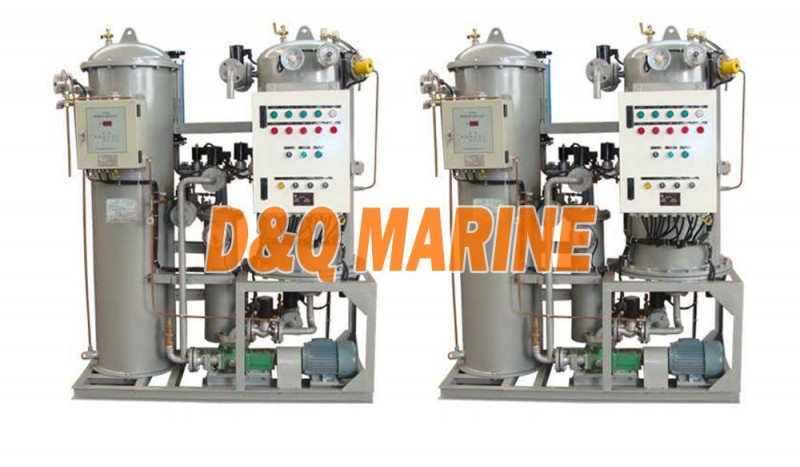

ZYFM-1.5m3 Bilge oily water separator industrial waste water separator
Description:
ZYFM-1.5m3 Bilge oily water separator industrial waste water separator of bilge water separator is a new type of vacuum micro filter type oil-water separation devices, it is widely applicable to the bilge oily water and ports, docks, factories and treatment of oily wastewater, in full compliance with international seaweed organization IMO - MEPC107 (49), and can satisfy the rules of our government oily sewage discharge standard is less than 15 mg/l. Products have obtained certificate of China classification society type before and IMO approval notification.
ZYFM series of bilge water separator, processing range from 0.25 cubic meters per hour to 5 cubic meters per hour, a total of six kinds of specifications , first separator, second separator, the special pump, electric control box, a alarm recorder, switch valve, of cycle test system such as accessories.
Form a complete set of special pump does not directly absorbed oily water, avoid the emulsified oil wastewater, guarantee the primary separator has good separation effect, reduce the secondary load of emulsified oil separator, prolong service life.
Technical Data:
| Model Number | ZYFM-1.5 |
| Treatment capability (m3 per hour) | 1.5 |
| Discharging standard | Equal or less than 15ppm |
| Design pressure | 0.2 Mpa |
| Types of pump | Single screw pump / plunger pump |
| Suction lift(m) | Equal or less than 6 |
| Power of motor(kw) | 1.5 |
| Electric heating power (KW) | 1 |
| Power supply | 220V 50HZ,380V 50HZ, 410V 50HZ,440V 60HZ |
| Gathering room heating method and power | Electric heating |
| 2kw | |
| Oil drainage mode | Automatic and manual |
| Dimension(LXWXH) | 1900X1200X2010 |
| Weight(kg) | 1000 |
