MTX Armoured Flame Retardant MV Power Cables:

Basic Parameters

Cable Feature: flame retardant, low smoke & halogen free.

Bending Radius: 6×OD (OD>25mm); 4×OD (OD ≤25mm)

Temperature Range: -30℃ ~ +80℃

Standards
IEC 60092-350/351/354/359

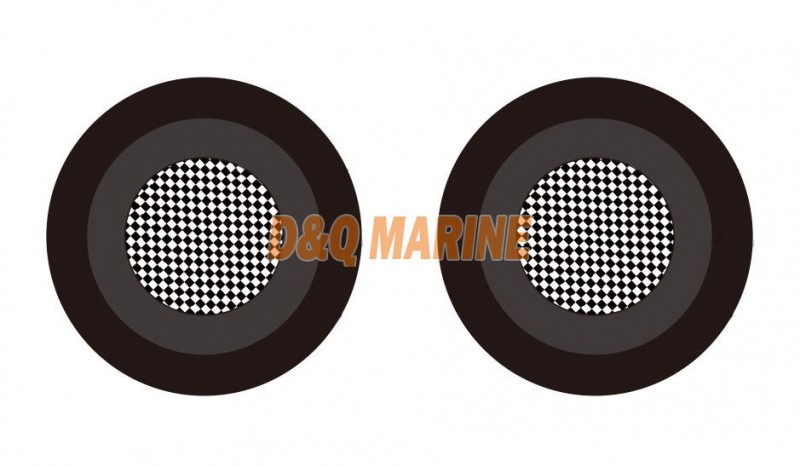

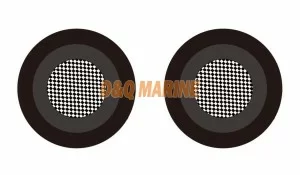

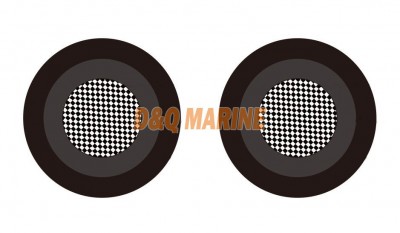

Construction

Conductors: Class 2 stranded copper conductor.
Conductor Screen: Semi-conducting layer (tape/compound).
Insulation: XLPE.
Insulation Screen: Semi-conducting layer (tape/compound).
Metallic Screen: Copper tape
Inner Sheath: LSOH (SHF1).
Armour: Copper wire braid or galvanized steel wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
