Fire-Fighting Mixed-Flow Fan

Fire-Fighting Mixed-Flow Fan:

China Fire-Fighting Mixed-Flow Fan:

FYHL-14 a mixed-flow fire specisl high temperature smoke exhaust fa is HTF fire derved products of high temperature fan,fan inlet end is equippedwith collecting muffler,witch is beneficial to reduce the noise,and product at about 300℃ environment temperature in normal operation for 1 hours,this product can be used for ventilation and smoke exhaust,and can be entilated take a breath,but also high temperature smoke such as dual role.Applicable to the tunel underground garage,underground mall,underground warehouse,advanced construction,such as high temperature smoke,is ideal for fire fighting products,by design institute and the selection of the user.In the case of fire,can quickly discharge flue gas,ensure the security of the researchers were able to pass in and out ,is the essential facility of fire safety.Fan impeller using the characteristics of the radial acceleration cone twisted blades welded together on the wheel hub,inlet streamline trumpet silencer and ram connection into a whole,is equipped with guide vane,has the good air distribution,pressure stability,is between centrifugal ventilator and axial flow fan,a new type of novel design,compact structure,small volume,light weight,with the centrifugal fan with high pressure,axial flow fan large flow,high efficiency,energy saving,low noise,easy installation,etc.

Specification：

machine(No)	rotation speed(r/min）	matching motor(kW)	volume flow(m³/h)	total pressure（Pa)	noise dB(A)
2.5	2900	0.75	2253~1340	402~554	≦73
	1450	0.37	1126~670	100~139	≦61
	960	0.25	746~444	44~61	≦52
3	2900	1.1	3893~2316	478~798	≦74
	1450	0.37	1946~1158	145~200	≦61
	960	0.25	1289~767	63~87	≦52
3.5	2900	2.2	6181~3678	787~1086	≦75
	1450	0.55	3091~1839	197~272	≦62
	960	0.25	2046~1217	86~119	≦54
4	2900	5.5	9227~5490	1028~1419	≦77
	1450	0.75	4614·2745	257~355	≦65
	960	0.37	3055~1817	112~156	≦57
4.5	2900	7.5	13138~7816	1301~1796	≦78
	1450	1.1	6569~3908	325~449	≦66
	960	0.55	4349~2586	143~196	≦58
5	1900	15	18022~10722	1606~2217	≦80
	1450	2.2	9091`5361	402~554	≦68
	960	0.75	5966~3549	176~243	≦59
5.5	1450	3	11993·7136	486~670	≦69
	960	1.1	79414724	213~294	≦61
	720	0.55	5956~3543	120~166	≦57

machine(No)	rotation speed(r/min）	matching motor(kW)	volume flow(m³/h)	total pressure（Pa)	noise dB(A)
6	1450	5.5	15571~9264	578~798	≦70
	960	1.5	10309~6133	253~350	≦66
	720	0.75	7732~4600	142~197	≦58
6.5	1450	7.5	1979~11778	679~937	≦74
	960	2.2	13107~7798	298~411	≦68
	720	1.1	9830~5849	167~231	≦62
7	1450	11	24726~14710	787~1086	≦77
	960	3	16370~9340	345~476	≦70
	720	1.5	12278~7305	194~268	≦64
7.5	1450	15	30411~18094	904~1247	≦79
	960	4	20136~11979	396~547	≦75
	720	2.2	15101~8984	223~308	≦67
8	1450	18.5	36908~21959	1028~1419	≦82
	960	5.5	24436~14538	451~622	≦74
	720	2.2	18327~10904	253~350	≦71
8.5	1450	22	44270~26339	1161~1602	≦85
	960	7.5	29310~17438	509~702	≦77
	720	3	21883~13079	286~396	≦73
9	1450	30	52551~31266	1301~1796	≦88
	960	11	34793~20700	570~787	≦80
	720	4	26094~14789	320~443	≦75
9.5	1450	37	61806~36769	1448~2001	≦91
	960	11	40920~24344	634~877	≦82
	720	5.5	30690~18258	357~494	≦76
10	1450	55	72087~42888	1606`2217	≦92
	960	15	47726~28395	704~972	≦85
	720	7.5	35795~21296	396~547	≦77
10.5	1450	75	83450~49646	1769~2444	≦94
	960	18.5	65250~32869	775~1071	≦87
	720	11	41437~24651	436~602	≦79
11	1450	90	96949~57081	851~1176	≦104
	960	22	63524~37792	478~661	≦89
	720	11	47643~28344	303~513	≦82
11.5	1450	110	109636~65224	2122~2932	≦107
	960	30	72587~43183	930~1285	≦90
	720	15	54440~32387	523~723	≦84
12	1450	132	124567~74107	2311~3192	≦111
	960	37	82472~49064	1013~1399	≦92
	720	15	61854~36798	570~787	≦86
12.5	1450	160	140796~83762	2507~3464	≦117
	960	45	93217~65456	1099~1618	≦93
	720	18.5	69912~41592	618~854	≦88
13	960	55	104866~62380	1188~1642	≦94
	720	22	78642~46785	668~923	≦90
	560	11	61166~36388	404~558	≦81
13.5	960	75	117426~69859	1282~1771	≦99
	720	30	88070~52394	721~96	≦93
	560	15	68498~40761	436~602	≦82
14	960	90	130963~77912	1378~1905	≦102
	720	37	98222~58434	775~1071	≦95
	560	18.5	76395~45448	469~648	≦84

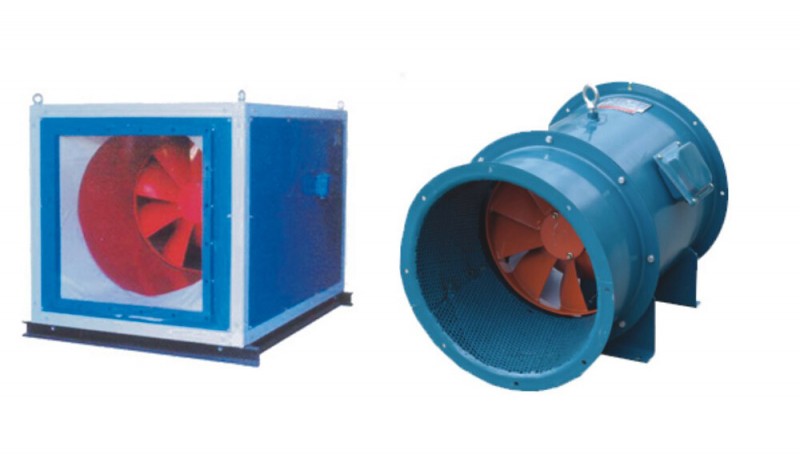

Picture：

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery：

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
