Container Bridge Lock:

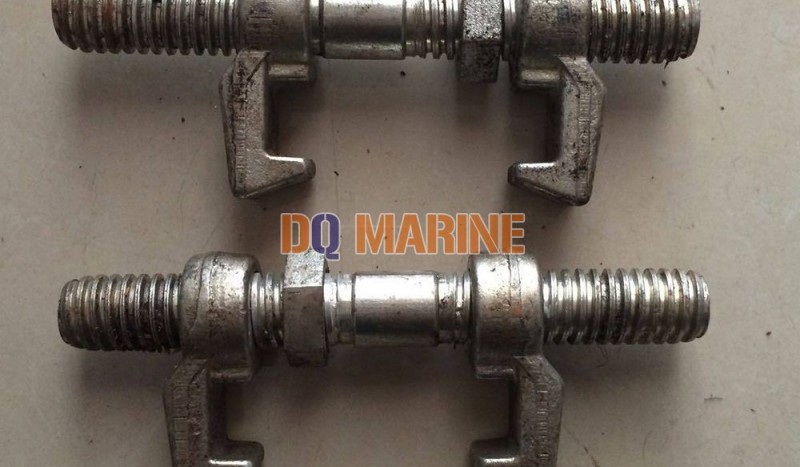

Container Bridge Lock Introduction

Used for horizontal or vertical connections between two adjacent rows of uppermost containers to disperse the load of the main lashing device.

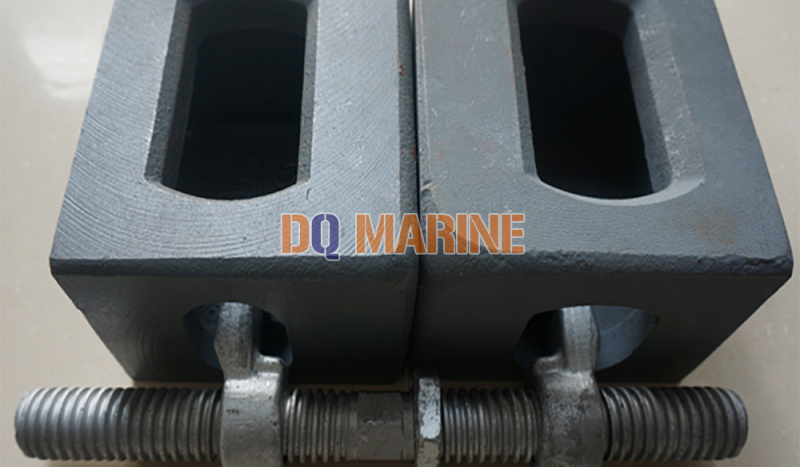

Using method：The use of the bridge lock is simple, and only two end frames (lock, hook and head) of the bridge lock are inserted into the corner holes of the adjacent two containers, and then the nut is rotated to connect the container.

Product Detail

Product standard: ISO-9001

Capacity: 100KN

Material: cast steel

Surface: Galvanizing
Size:

Length: 260mm Weight: 3kg
