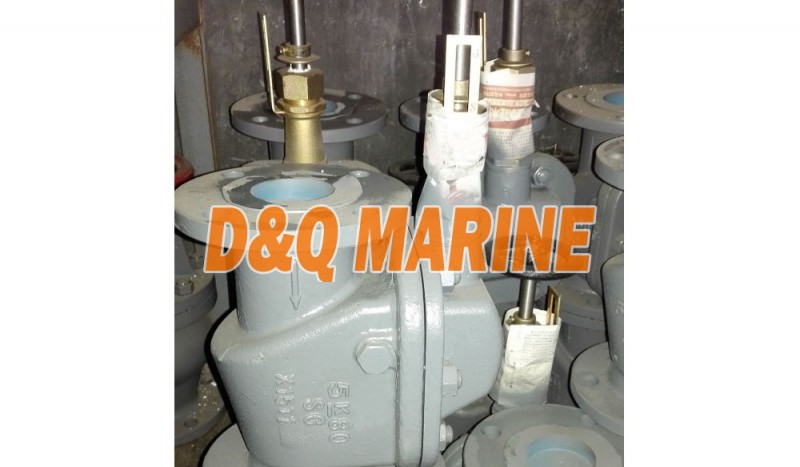

Marine Cast Steel 5K Screw Down Vertical Storm Valve JIS F3060

Marine Cast Steel 5K Screw Down Vertical Storm Valve JIS F3060

China Marine Cast Steel 5K Screw Down Vertical Storm Valve JIS F3060:

Marine Cast Steel Storm Valve is the non-return valve for scupper, soil and sanitary discharge lines in the ships. It is a kind of overboard discharge valve which can close automatically and prevent overboard water flow backward.

Technical Specification:

1. Design and manufacturing standard: JIS F3060-1996

2. Inspection and Test standard: JIS F7400

3. Connection Type: Flange

4. Flange standard: JIS B2220

5. Hydraulic Test Pressure: Body---0.5Mpa

Main Material:

1-Body: Cast Steel

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6) / Brass

4-Stem: Stainless Steel (SUS403)

Main Size List(mm):
