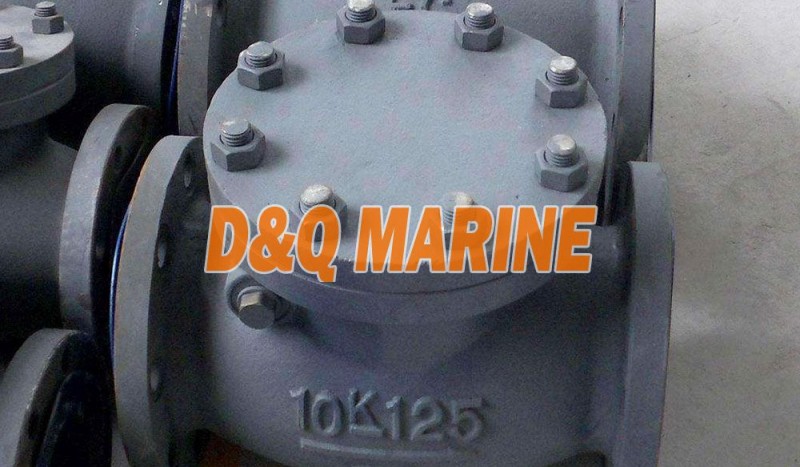

Marine Cast Iron 10K Swing Check Valve JIS F7373

Marine Cast Iron 10K Swing Check Valve JIS F7373

China Marine Cast Iron 10K Swing Check Valve JIS F7373:

Marine Cast Iron 10K Swing Check Valve JIS F7373 is the non-return valve for marine fuel oil, lubrication oil, fresh water and water feeding pipe lines. It is open and close automatically by medium flow and power to prevent the medium backflow,mainly used for medium one-way flow of the line, only allows the medium to flow in one direction.Swing Check Valve can be installed horizontally and vertically in the pipeline. But when installed vertically, the flow direction must be from down to up

Technical Specification:

1. Design Standard: JIS F7373-1996

2. Inspection and Test Standard: JIS 7400-1996

3. Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa~0.4Mpa

4. Flange Standard: JIS B2220 - 10K

Max Working Pressure:

Main Material:

1-Body: Cast Iron

2-Bonnet: Cast Iron

3-Disc: Bronze

4-Seat: Bronze

5-Gasket: non-asbestos

Main Size List(mm):
