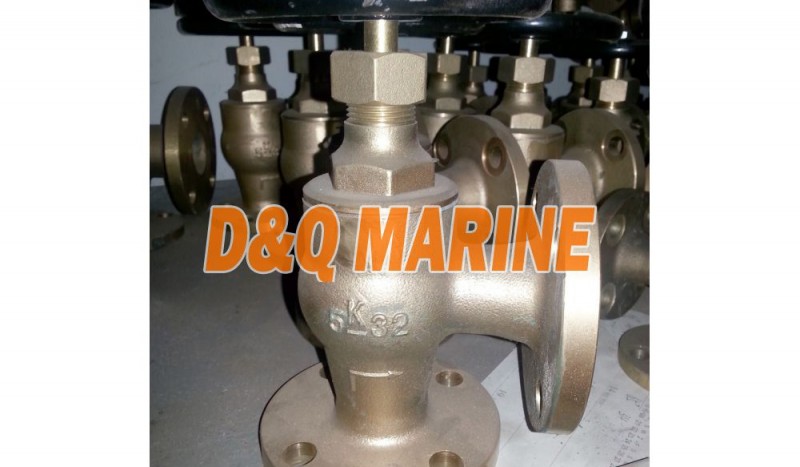

Marine Angle Valve is marine angle globe valve or marine angle stop valve. It is used to open/close the pipe system and adjust the flow rate in the pipe system whose angle between inlet and outlet is 90 degree. Marine Bronze/Brass Angle Valve can be used for sea water, fresh water, fuel oil, lubrication oil & steam pipe system.
If the size is DN10~DN40, the bonnet is screwed type, if the size is DN50 and bove DN50, the bonnet is bolted type.
Technical Specification:
1.Design & Manufacturing Standard: JIS F7302
2.Inspection & Test Standard: JIS F7400
3. Connection Type: Flange
4.Flange Standard: JIS B2220 5K
5.Hydraulic Pressure Test: Body-1.05Mpa, Seat-0.77Mpa
6. Max Working Pressure:0.5Mpa for air, gas, oil, pulsation water and steam of 205℃ or less, 0.7Mpa for non-shock water of 120℃ or less.
7. Warranty: 12months
8. Certificate: CCS, ABS, BV, DNV/GL, RINA, LR, NK, IRS, RMRS
Main Material:
1-Body: Bronze / Brass
2-Disc: Bronze / Brass
3-Stem: Brass
4-Bonnet:Bronze / Brass
5-Handwheel: Cast Iron (HT200)
Main Data for Joining(mm):
| IMPA Code | Size | L1 | D | C | No of Bolt Hole | h | t | H | D2 |
| 750131 | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 750132 | 20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 |
| 750133 | 25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 750134 | 32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 |
| 750135 | 40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 |
| 750136 | 50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 |
| 750137 | 65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
