CL Series marine vertical centrifugal pump:
China CL Series marine vertical centrifugal pump:
CL type Marine vertical centrifugal pump is suitable for ballast pump, bilge pump, fire pump, cooling pump and sanitary pump.
CLG series pumps are designed with high back pressure on the basis of cl-type pumps. They can withstand the pressure of 3.0mpa and can be matched with dc motors. They are widely used in submarines.

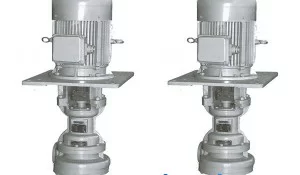

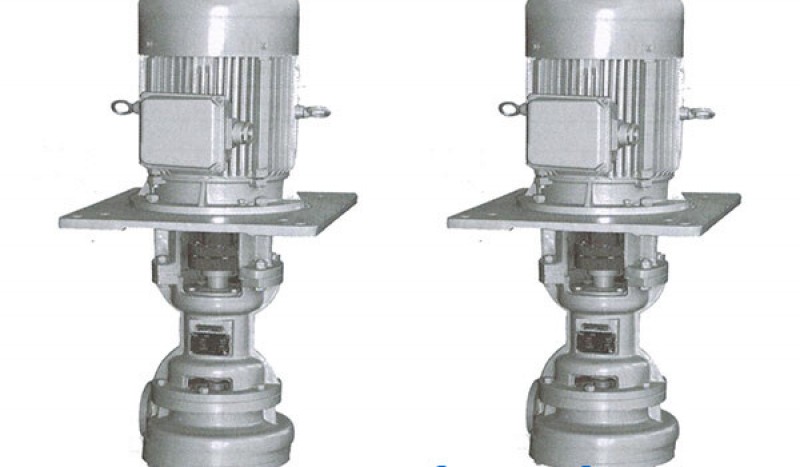

CL Series marine vertical centrifugal pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 4CLG-12 | 90 | 30 | 2800 | 14 |
| 25CL-30 | 3.6 | 30 | 2950 | 1.1 |
| 50CL-30 | 20 | 30 | 2950 | 4 |
| 50CLG-30 | 18 | 24.5 | 2950 | 3 |
| 50CL-30A | 18 | 24.5 | 2950 | 3 |
| 65CL-45 | 30 | 45 | 2950 | 7.5 |
| 65CLG-38 | 2027 | 38 | 1450 | 5.5 |
| 65CL-45A | 25 | 37 | 2950 | 5.5 |
| 65CL-65 | 18 | 65 | 2950 | 11 |
| 80CL-7.5 | 50 | 7.5 | 1450 | 1.1 |
| 80CL-30 | 45.5 | 30 | 2950 | 7.5 |
| 80CL-30A | 50 | 25 | 2950 | 5.5 |
| 80CL-35 | 90 | 35 | 2950 | 7.5 |
| 80CL-50 | 50 | 50 | 2950 | 22 |
| 80CL-65 | 46.5 | 65 | 2950 | 18.5 |
| 80CL-65A | 44 | 56 | 2950 | 15 |
| 80CL-65B | 100 | 50 | 2950 | 15 |
| 100CL-30 | 100 | 65 | 2950 | 15 |
| 100CLG-30 | 90 | 50 | 2950 | 15 |
| 100CL-30A | 100 | 50 | 2950 | 11 |
| 100CL-45 | 90 | 30 | 2950 | 22 |
| Also have bigger pumps, pls contact us for more information. | ||||
