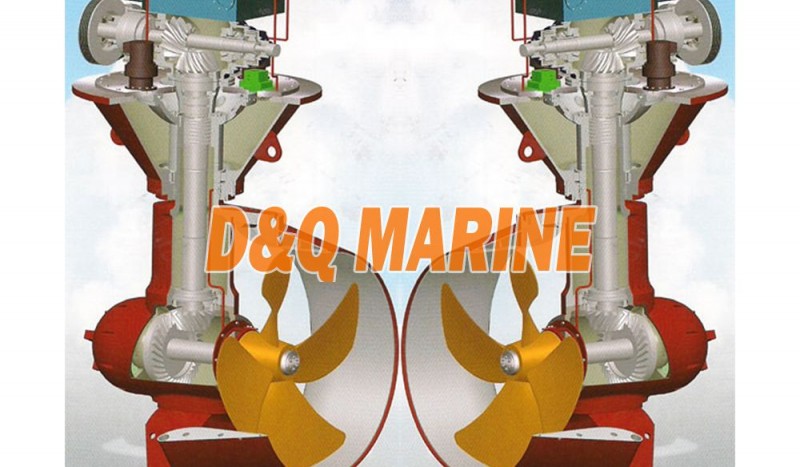

Marine Azimuth Thruster:

Product description:

Marine Azimuth Thruster is a new kind of ship propulsion system, it in oar rudder one way instead of traditional way of propeller, rudder combination system of propulsion, using the azimuth thruster ontology in turning around the vertical axis of 360 ° any direction, to get a full range of maximum thrust and rudder effect, make the ship's maneuverability, greatly improve the maneuverability.

The main technical innovation points:
1) it has solved the high power, high speed of the rudder propeller power transmission shafting torsional vibration in the course of running, rotary vibration, and the problem of system of fever it is using the shafting dynamic force oil circulation flow heat transfer heat can be taken away with water, thus ensuring the rudder propeller shaft system temperature does not exceed 80 ℃
2) it has solved the high power, high intensity of the spiral bevel gear design and manufacturing, has realized the high power, high torque independently design and manufacture of spiral bevel gear.
3) It uses closed electro-hydraulic proportion control system, and overcome the imported technology of small and medium-sized rudder propeller hydraulic system which were liable to occur during the oil shock, the crawling and oscillation problem. To improve the reliability of the project product operation.

Structure:

Technical Specification:
