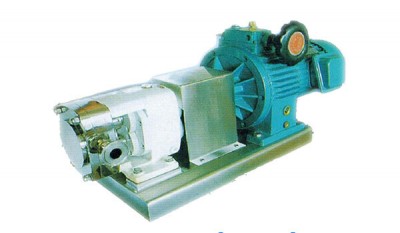

LQ3A Series Stainless Steel Anti-corrosive Centrifugal Pump Rotor Pump
China LQ3A Series Stainless Steel Anti-corrosive Centrifugal Pump Rotor Pump:
All parts in contact with media (materials) are made of stainless steel in full compliance with the sanitary standards.Suitable for conveying medium (material) with high viscosity, concentration and any particle.Suitable temperature 30 ℃ to + 200 ℃.High pressure, suitable for long distance and high resistance quantitative transport.There is no contact between the rotor and the rotor, no wear and tear in long-term use, running smoothly, so the noise is low.Easy assembly and disassembly, convenient cleaning, keep clean.
Main Technical Data
| Model | Displacement L/100r | Capacity L/H | Rev speed r/min | Motor power KW |
| LQ3A-3 | 3 | 800 | 500 | 0.75 |
| LQ3A-6 | 6 | 1600 | 500 | 0.75 |
| LQ3A-8 | 8 | 2400 | 500 | 1.5 |
| LQ3A-12 | 12 | 3200 | 500 | 2.2-11 |
| LQ3A-20 | 20 | 5400 | 500 | 3 |
| LQ3A-30 | 30 | 6400 | 400 | 4 |
| LQ3A-36 | 36 | 7600 | 400 | 5.5 |
| LQ3A-52 | 52 | 11000 | 400 | 5.5 |
| LQ3A-66 | 66 | 14000 | 400 | 7.5 |
| LQ3A-78 | 78 | 18000 | 400 | 7.5 |
| LQ3A-100 | 100 | 22000 | 400 | 11 |
| LQ3A-135 | 135 | 30000 | 400 | 11 |
| LQ3A-160 | 160 | 34000 | 400 | 18.5 |
| LQ3A-200 | 200 | 43000 | 400 | 22 |
