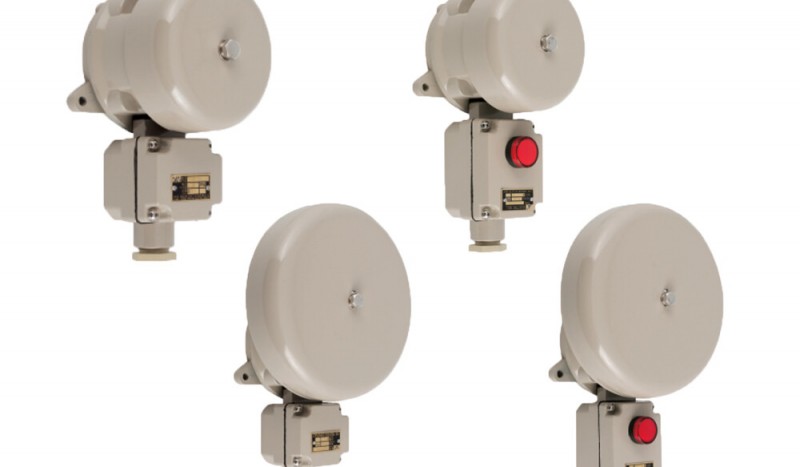

Series of Marine Sound Signals Type B

Series of Marine Sound Signals Type B:

China Series of Marine Sound Signals Type B:

Series of Marine Sound Signals
Sound announciator is an important and simple tool for communication on ships. An alarm can send out special signal in time to indicate the
occurrence of certain abnormal phenomenon, at the same time, it is also used as marine telephone, communication device, command alarm and other electrical appliances on ships.
Suitable environmental temperature: -25 ℃ ~+55 ℃.
It can reliably work when the power voltage ranges within + 15 % for DC current, +6% ~-10% for AC current ofits rated voltage, and its sound
intensity will not lower than the value stipulated.
The protection class IP56.

Cable outside diameter Φ 14- Φ 16.

Technical Data:

	type	voltage	current	sound intensity	weight
DC alarm bell	YL120-24Z	24V	0.3A	85dB	2.0kg
	YL120-110Z	110V	0.1A	85dB	2.0kg
	YL120-220Z	220V	0.05A	85dB	2.0kg
AC alarm bell	YL120-24J	24V	0.2A	85dB	2.0kg
	YL120-110J	110V	0.1A	85dB	2.0kg
	YL120-220J	220V	0.05A	85dB	2.0kg

	type	voltage	current	sound intensity	weight
DC electric bell for signal light	YLX120-24Z	24V	0.8A	85dB	2.1kg
	YLX120-110Z	110V	0.3A	85dB	2.1kg
	YLX120-220Z	220V	0.2A	85dB	2.1kg
AC electric bell for signal light	YLX120-24J	24V	0.8A	85dB	2.1kg
	YLX120-110J	110V	0.4A	85dB	2.1kg
	YLX120-220J	220V	0.3A	85dB	2.1kg

	type	voltage	current	sound intensity	weight
DC electric bell	YL200-24Z	24V	0.3A	95dB	2.75kg
	YL200-110Z	110V	0.1A	95dB	2.75kg
	YL200-220Z	220V	0.05A	95dB	2.75kg
AC electric bell	YL200-24J	24V	0.2A	95dB	2.75kg
	YL200-110J	110V	0.1A	95dB	2.75kg
	YL200-220J	220V	0.05A	95dB	2.75kg

	type	voltage	current	sound intensity	weight
DC electric bell for signal light	YLX200-24Z	24V	0.8A	95dB	2.85kg
	YLX200-110Z	110V	0.3A	95dB	2.85kg
	YLX200-220Z	220V	0.2A	95dB	2.85kg
AC electric bell for signal light	YLX200-24J	24V	0.8A	95dB	2.85kg
	YLX200-110J	110V	0.4A	95dB	2.85kg
	YLX200-220J	220V	0.3A	95dB	2.85kg

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery：

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
