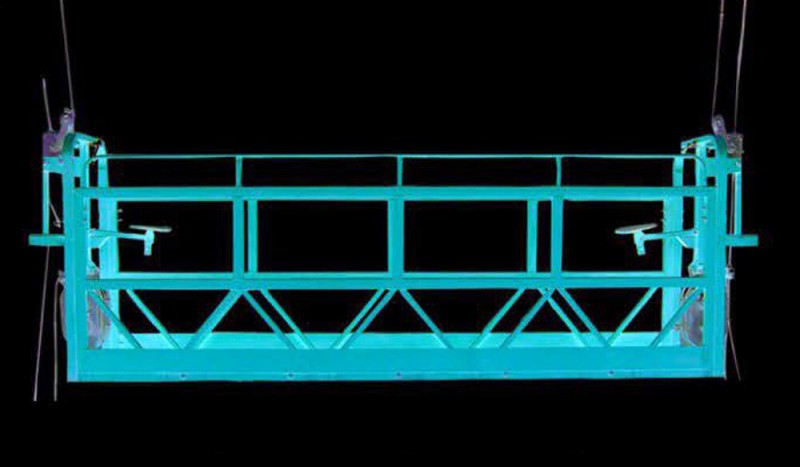

Lifting basket
Lifting basket
The hanging basket is a construction machine for high-altitude construction work, which is used for curtain wall installation and exterior wall cleaning. The gondola is a new type of high-altitude work equipment that can replace traditional scaffolding, reduce labor intensity, improve work efficiency, and be able to be reused.
Product advantages
1. The three-phase asynchronous brake motor is used to form a smooth landing along the wire rope through the speed reduction mechanism and the rope hoist.
2. The anti-tilt safety lock can lock the wire rope within 3-8 degrees of the suspension platform to prevent the suspension from falling.
3. The upper part of the hanging basket is a hanging structure. The hanging orchid is made of carbon steel hanging basket, and the length can be lengthened and customized.
4. Adjustable hang-up machine can adapt to any combination of complex site use within the specified range.
Technical Specification
| Type | ZLP800 | ZLP630 | ZLP500 |
| Load(Kg) | 800 | 630 | 500 |
| Lifting speed(m/min) | 8-10 | ||
| Motor | LTD8.0 | LTD6.3 | LTD5.0 |
| Security lock | SL-30 | ||
| Suspension weight(Kg) | 350 | ||
| Work platform size(mm) | 2500*760*1450 | ||
| Lifting part weight(Kg) | 586 | 486 | 486 |
| product structure | The upper part is the suspension mechanism | ||
