JMZ Series Marine Selfpriming alcohol Pump FMZ Series Self-priming Chemical Pump
China JMZ Series Marine Selfpriming alcohol Pump FMZ Series Self-priming Chemical Pump:
JMZ Series adopts new mechanical seal assembly, safe and explosion-proof, no leakage for years.This pump is compact in structure, simple in operation, good in self-priming performance, small in volume, light in weight, stable in performance, no bottom valve, no irrigation and other characteristics when starting, is a new generation of domestic products, with broad application market and development prospects.

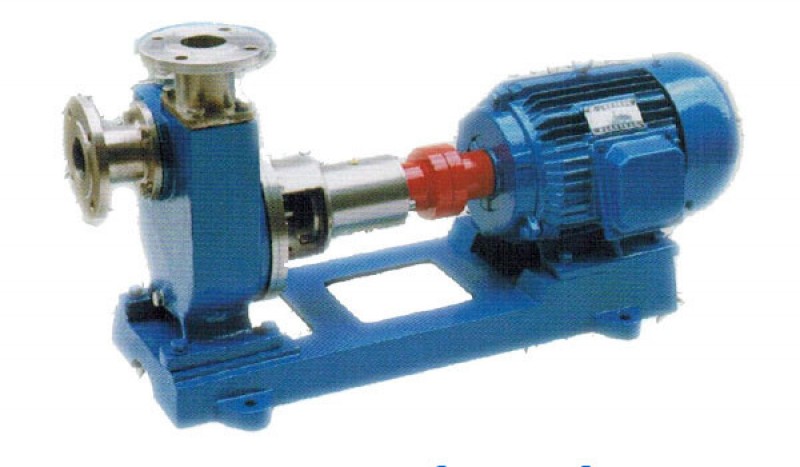

JMZ Series Marine Selfpriming alcohol Pump FMZ Series Self-priming Chemical Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 25JMZ-22 | 3 | 22 | 2900 | 1.1 |
| 25JMZ-30 | 3 | 30 | 2900 | 1.5 |
| 40JMZ-22 | 6 | 22 | 2900 | 1.5 |
| 40JMZ-30 | 6 | 30 | 2900 | 2.2 |
| 40JMZ-40 | 6 | 40 | 2900 | 3 |
| 50JMZ-22 | 12 | 22 | 2900 | 2.2 |
| 50JMZ-30T | 20 | 30 | 2900 | 4 |
| 50JMZ-40 | 12 | 40 | 2900 | 4 |
| 65JMZ-22 | 24 | 22 | 2900 | 4 |
| 65JMZ-30T | 30 | 30 | 2900 | 5.5 |
| 80JMZ-22 | 48 | 22 | 2900 | 5.5 |
| 80JMZ-30 | 48 | 30 | 2900 | 7.5 |
| 100JMZ-22 | 80 | 22 | 2900 | 11 |
| 100JMZ-30 | 100 | 30 | 2900 | 15 |
| 150JMZ-22 | 160 | 22 | 2900 | 15 |
| 150JMZ-30 | 160 | 30 | 2900 | 22 |
| 200JMZ-22 | 200 | 22 | 2900 | 18.5 |
| 200JMZ-30 | 200 | 30 | 2900 | 30 |
