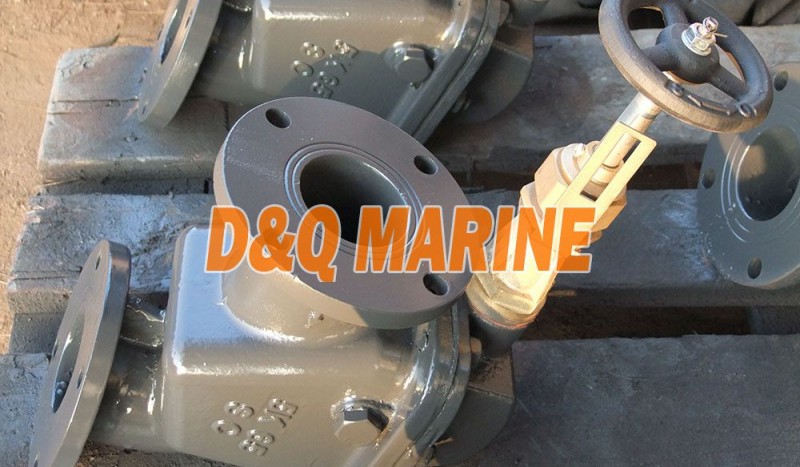

Marine Cast Steel 5K Angle Storm Valve JIS F3060R
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Cast Steel 5K Angle Storm Valve JIS F3060R:
China Marine Cast Steel 5K Angle Storm Valve JIS F3060R:

Marine Cast Steel Storm Valve is the non-return valve for scupper, soil and sanitary discharge lines in the ships. It is a kind of overboard discharge valve which can close automatically and prevent overboard water flow backward.

Technical Specification:

1. Design and manufacturing standard: JIS F3060R

2. Inspection and Test standard: JIS F7400

3. Connection Type: Flange

4. Flange standard: JIS B2220 5K

5. Hydraulic Test Pressure: Body---0.5Mpa

Main Material:

1-Body: Cast Steel

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)

Main Size(mm):

DN L1 H D C No. h t D2
50 90 170 130 105 4 15 16 100
65 110 200 155 130 4 15 16 100
80 120 220 180 145 4 19 18 125
100 130 250 200 165 8 19 20 125
125 150 270 235 200 8 19 20 125
150 170 310 265 230 8 19 22 125
200 190 400 320 280 8 23 24 125
