Marine Junction Box
China Marine Junction Box:
1.Be applied to the connection protection in marine AC & DC and adapt for waterproof and dustproof shockproof harsh environments.CB3413-92 standard marine terminal box,terminals meeting GB/T5905.-1997 electronic equipment-Basic testing procedures and measuring methods used electromechanical components.
2.Rated voltage ≤500V,rated current 20A3.Protection class:IP56
4.Housing material:stainless steel
Drawing：
Specification：
| Type | Optional Terminal Number | Optional Gland Number | Dimensions(mm) | Mounting Dimensions(mm) | Weight(kg)≤ | ||||
| A | B | C | D | E | Φ | ||||
| JXT | 6~10 | 2~8 | 184 | 100 | 70 | 168 | 84 | 9.0 | 2.5 |
| JXT | 10~20 | 2~12 | 246 | 166 | 100 | 210 | 170 | 9.0 | 4.5 |
| JXT | 20~30 | 2~14 | 296 | 196 | 100 | 260 | 200 | 9.0 | 5.0 |
| JXT | 30~40 | 2~20 | 386 | 226 | 100 | 350 | 230 | 9.0 | 6.5 |
| JXT | 40~60 | 2~30 | 486 | 246 | 100 | 450 | 250 | 9.0 | 10.0 |
| Type | Optional Fuse Number(2-20A) | Optional Gland Number | Dimensions(mm) | Mounting Dimensions(mm) | Weight(kg)≤ | ||||
| A | B | C | D | E | Φ | ||||
| JXTR | 4~8 | 2~8 | 184 | 100 | 70 | 168 | 84 | 9.0 | 2.5 |
| JXTR | 8~12 | 2~12 | 246 | 166 | 100 | 210 | 170 | 9.0 | 4.5 |
| JXTR | 10~14 | 2~14 | 296 | 196 | 100 | 260 | 200 | 9.0 | 5.0 |
| JXTR | 14~22 | 2~20 | 386 | 226 | 100 | 350 | 230 | 9.0 | 6.5 |
| JXTR | 22~50 | 2~30 | 486 | 246 | 100 | 450 | 250 | 9.0 | 10.0 |

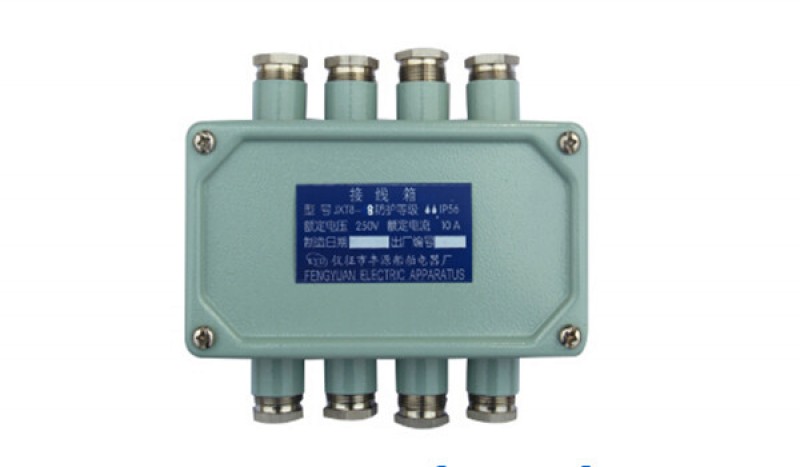

Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
