IMF Series Marine Fluorine Lining Magnetic Drive Pump:
China IMF Series Marine Fluorine Lining Magnetic Drive Pump:
The IMF without leaking magnetic drive pump is a kind of high temperature resistance, strong resistance to corrosion of the new product, USES the F46 forming technology, because the material in corrosion medium has unique properties, lining on the inner wall of the various types of cast iron, carbon steel and the inner cavity of the pump body, not only can be applied to different working conditions of strong corrosive medium, and can instead of the expensive rare metals.Since the special body is enclosed in a static isolation sleeve, no mechanical seal is needed to achieve complete leakage;The pump is simple in structure, simple in operation, convenient in installation and maintenance.

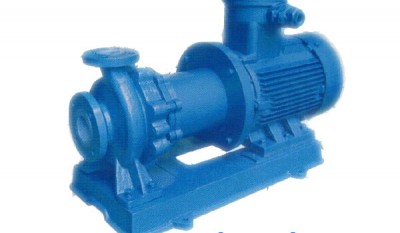

IMF Series Marine Fluorine Lining Magnetic Drive Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 32-20-125 | 2.8 | 20.6 | 2900 | 1.1 |
| 32-20-160 | 2.8 | 33 | 2900 | 1.5 |
| 40-25-125 | 3.8 | 22 | 2900 | 2.2 |
| 40-25-160 | 3.8 | 34.5 | 2900 | 3 |
| 45-25-200 | 3.8 | 52.5 | 2900 | 5.5 |
| 50-32-125 | 7.5 | 22 | 2900 | 4 |
| 50-32-160 | 12.5 | 34.5 | 2900 | 4 |
| 50-32-200 | 7.5 | 52.5 | 2900 | 7.5 |
| 50-32-250 | 15 | 82 | 2900 | 15 |
| 65-50-125 | 15 | 22 | 2900 | 4 |
| 65-50-160 | 15 | 35 | 2900 | 7.5 |
| 65-40-200 | 15 | 53 | 2900 | 11 |
| 80-65-125 | 30 | 82 | 2900 | 22 |
| 80-65-160 | 30 | 22.5 | 2900 | 7.5 |
| 80-50-200 | 30 | 20 | 2900 | 11 |
| 80-50-250 | 30 | 34 | 2900 | 18.5 |
| 100-80-125 | 60 | 53 | 2900 | 37 |
| 100-80-160 | 60 | 84 | 2900 | 15 |
| 100-65-200 | 60 | 23 | 2900 | 22 |
