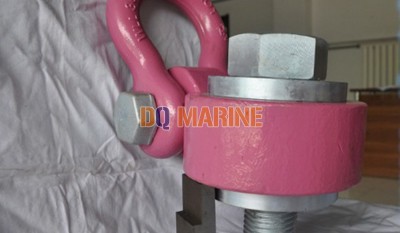

Heavy Side Pull Swivel Ring
Introduction
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Grade 100 Lifting Point are 360° rotation with 90° pivot function
Rated at 100% at 90° angle.
Product Information
Heavy Side Pull Swivel Ring sizes table
| Item No. | SIZE | Dimensions(mm) | N.W | |||||||
| A | B | C | D | E | F | G | SW | KG | ||
| YD-082-056 | M56×170L | 85 | 57 | 117 | 50 | 250 | 50 | 175 | 85 | 41 |
| YD-082-064 | M64×185L | 100 | 57 | 117 | 50 | 250 | 50 | 175 | 95 | 43 |
| YD-082-072 | M72×215L | 110 | 57 | 117 | 50 | 250 | 50 | 175 | 105 | 46 |
| YD-082-080 | M80×225L | 120 | 76 | 151 | 63 | 310 | 63 | 220 | 115 | 68 |
| YD-082-090 | M90×270L | 135 | 76 | 151 | 63 | 310 | 63 | 220 | 130 | 71 |
| YD-082-100 | M100×285L | 150 | 76 | 151 | 63 | 310 | 63 | 220 | 145 | 74 |
| YD-082-110 | M110×325L | 165 | 85 | 180 | 78 | 390 | 78 | 275 | 155 | 87 |
| YD-082-125 | M125×345L | 190 | 85 | 180 | 78 | 390 | 78 | 275 | 180 | 90 |
