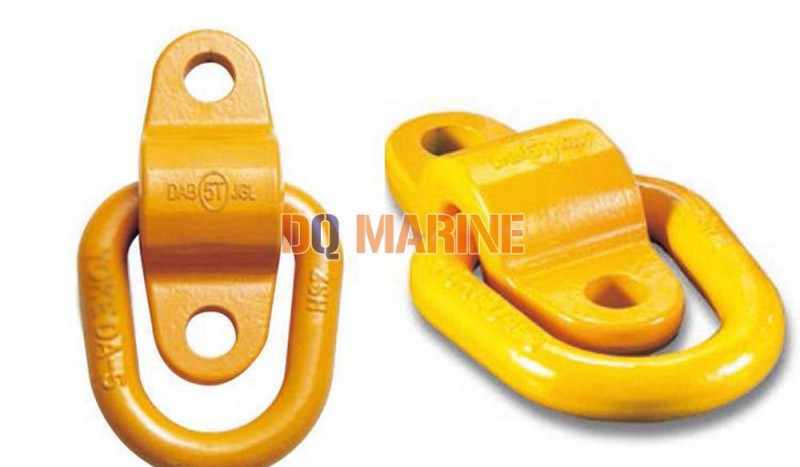

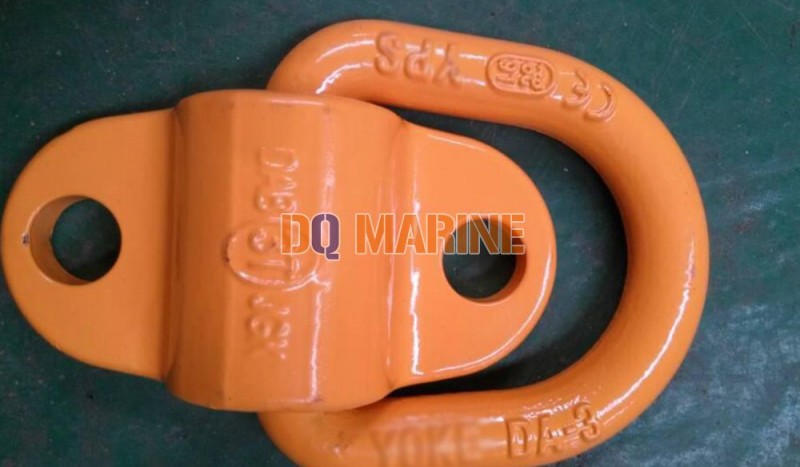

G80 Bolt-On Lifting Ring
Introduction
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test magnaflux crack detection.
With spring inside for better pivoting control.
Appropriate tie down fixed mode are available upon request.
Product Details
G80 Bolt-On Lifting Ring sizes table
| Type No. | WLL (T) | Dimensions (mm) | Weight (Kg) | ||||||||
| A | B | D | F | K | H | M | L | R | |||
| 1 | 1 | 50 | 72 | 14 | 27 | 98 | 55 | 14 | 139 | 24 | 0.8 |
| 2 | 3 | 68 | 84 | 17 | 33 | 114 | 50 | 16 | 144 | 29 | 1.1 |
| 3 | 5 | 64 | 116 | 22 | 43 | 160 | 74 | 20 | 203 | 33 | 2.5 |
